ALF-EXT60IR-18G GEN2

Category:

ALF-EXT60IR-18G GEN2

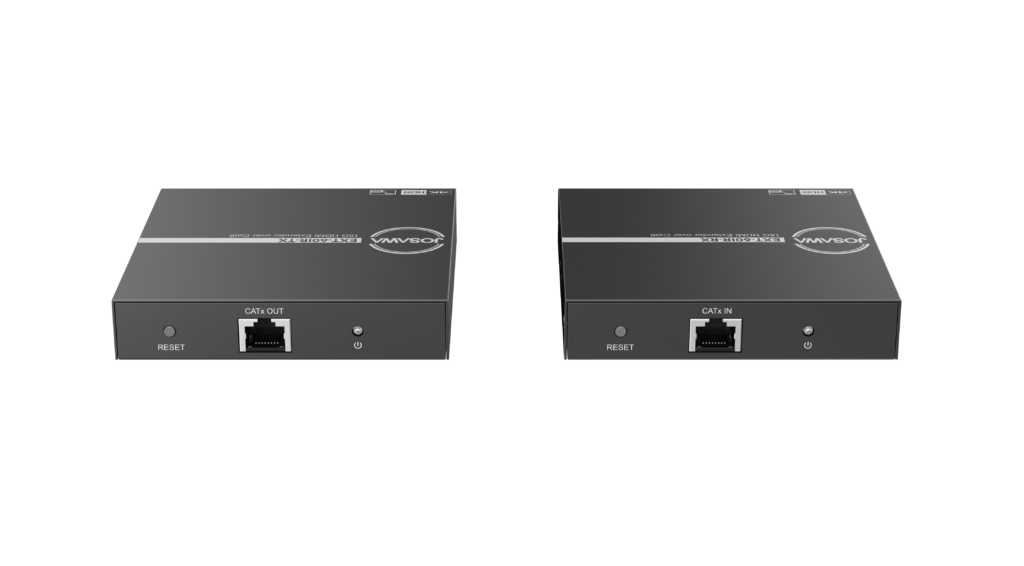

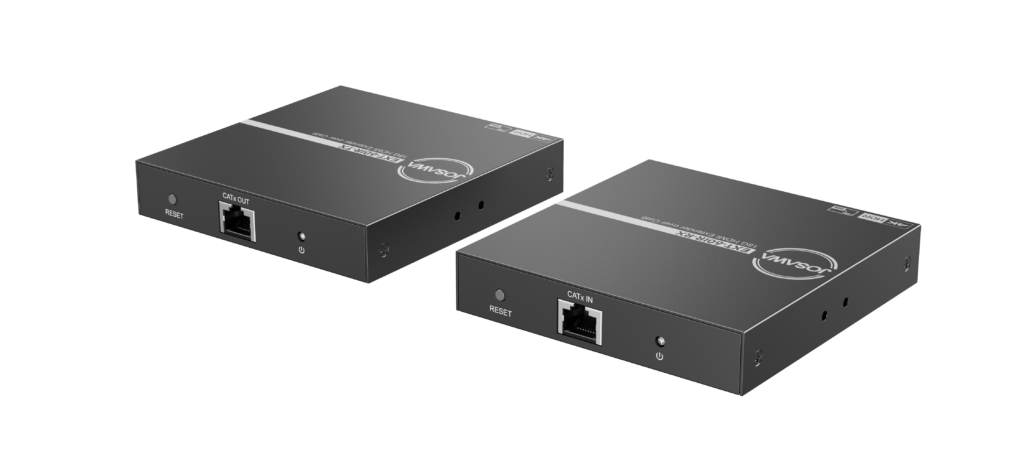

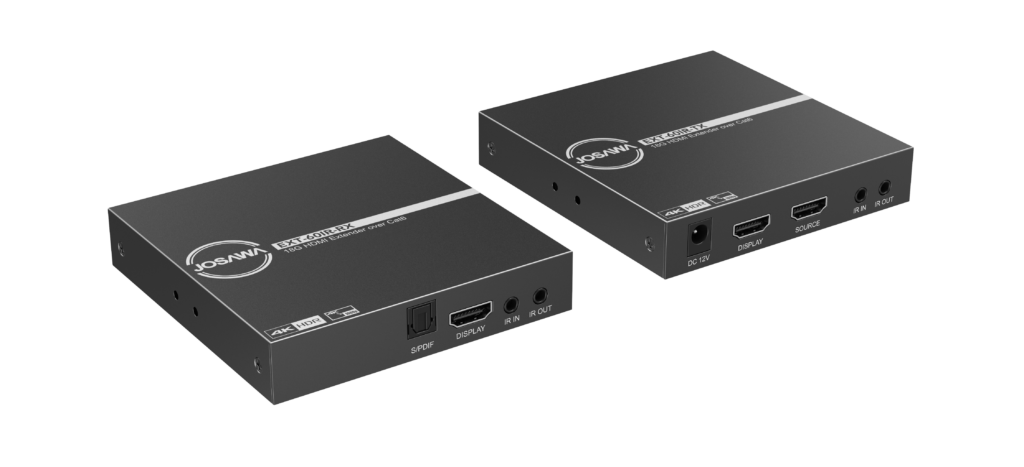

The ALF-EXT60IR-18G is a point-to-point extender set for HDMI 2.0 and IR signals; the set supports 4K / UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18 Gbps, and is HDCP 2.2 compliant. It provides HDMI transmission up to 230 feet / 40 meters for 4K@60Hz 4:4: 4 or 1080p, over single CAT6 cable. It supports video resolution down-scaling, and the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p display.

Product Features

  • Supports HDMI 0, up to 4K@60Hz 4:4:4, HDR, 18G, and HDCP 2.2.
  • Extends 4K or 1080p HDMI signal up to 230 feet / 70m over a single CAT6
  • HDMI loop out on
  • Bi-directional IR pass-through.
  • Supports video resolution down-scaling, 4K input can be automatically downscaled to 1080p output on receiver for compatibility with legacy 1080p display
  • Features visual lossless compression with no
  • EDID pass-through.
  • Compact design, easy to install and simple to

Specifications

Transmitter
Input (1) HDMI
Input Connector (1) 19-pin type-A female HDMI
Output (1) HDMI, (1) CATx OUT

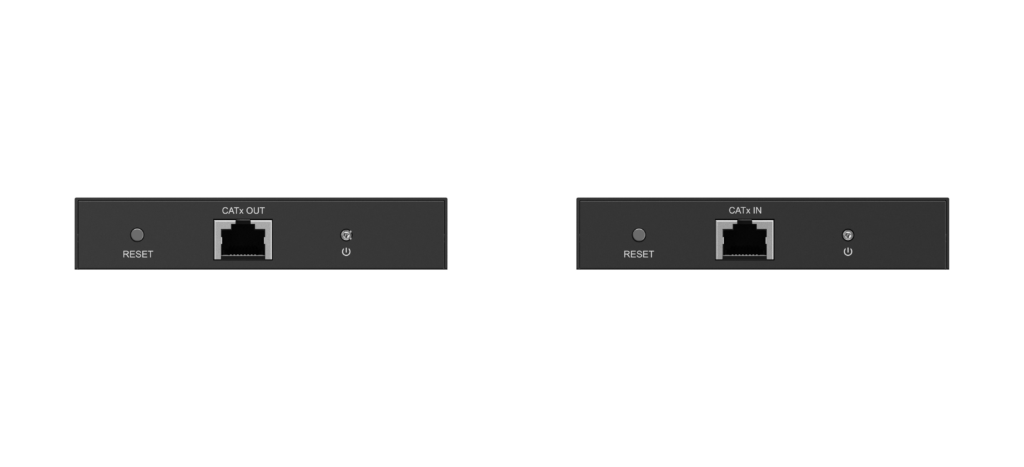

Output Connector (1) 19-pin type-A female HDMI, (1) RJ45
Control (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks
Receiver
Input (1) CATx IN
Input Connector (1) RJ45

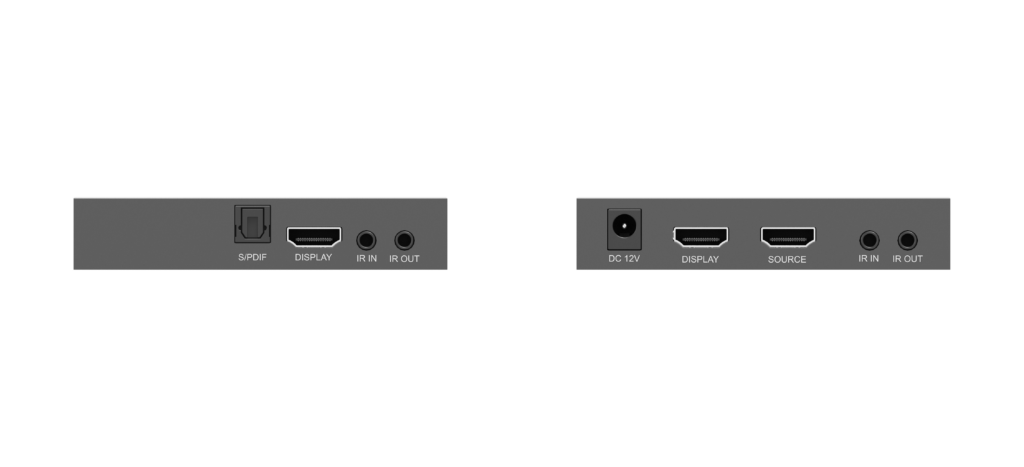

Output (1) HDMI (1) SPDIF
Output Connector (1) 19-pin type-A female HDMI
Control (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks
General
Video Resolution Up to 4K@60Hz 4:4:4, HDR
Transmission Distance 4K/1080p ≤ 70 meters (230ft)
HDMI Version Up to HDMI 2.0


HDCP Version

 Up to HDCP 2.2. The HDCP of output follows the HDCP version of display device.
EDID Pass-through Supported.


Power Supply

 Input: 100VAC~240VAC, 50/60Hz;

Output: 12VDC 1A
Power Consumption 4W (Max)
Operation Temperature -5~55℃
Storage Temperature -25~70℃
Relative Humility 10%-90%
Dimensions (W*H*D) 80mm x 16.8mm x 80mm
Net Weight Tx/Rx: 70g







Resources

Brochure

Technical Sheet

User Manual

FAQ's

1) Q – What is the EXT60IR set?

A – It is a cost-effective HDMI extender via CAT cable.

2) Q – How far can I extend the HDMI signal?

A – For 1080p and 4K signal is 70m (230ft)

3) Q – What CAT cable must be used?

A – CAT6 is recommended.

4) Q – Is power required on both the Transmitter and Receiver?

A – No, the Transmitter is the only unit that needs to be powered.

5) Q – What control options are available?

A – The unit supports IR control.
