ALF-USBC-EXT

USB Type-C to HDMI Extender 4K@60Hz 60m

Category:

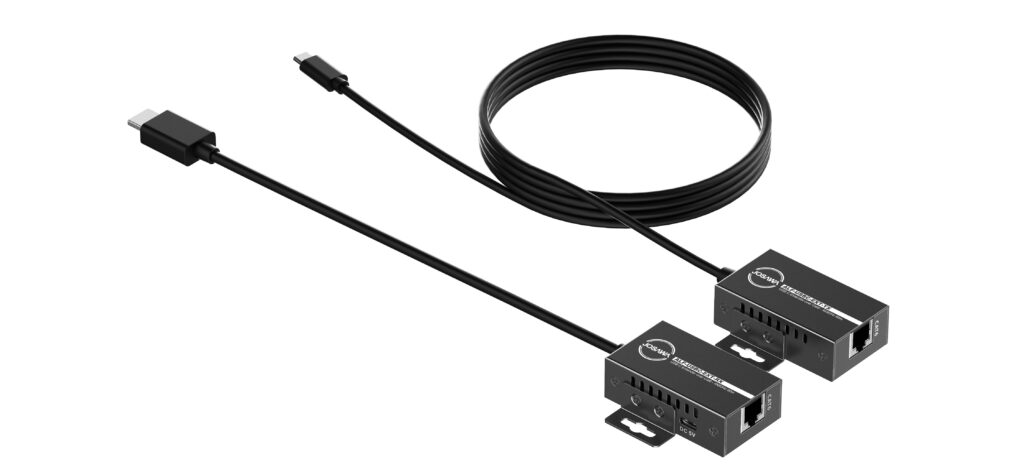

The Josawa ALF-USBC-EXT is a USB-C to HDMI extender over 60m. It achieves zero latency transmission via CAT6/6A/7 network cable. It supports 4K@60Hz Type-C audio and video signal transmission up to 60 meters and 25 meters for 4K@120Hz.

Features
1. Zero latency transmission
2. Support up to 4K@120Hz resolution, backward compatible
3. Compatible with Cat6/6A/7network cable, transmission distance up to 60
meters for 4K@60Hz signal and 25 meters for 4K@100/120Hz signal
4. Support HDR10
5. Support EDID passthrough and self-adaptive display on resolutions
6. Support Type-C input and HDMI output
7. Also receiver can be powered by USB Type-C port
8. Compact design, plug and play

Specifications



Compatibility

 Voltage TX: Power by the signal source RX: DC 5V500mA
Power consumption TX < 3W, RX < 3W






HDMI performance

 HDMI version HDMI 2.0
HDCP version HDCP 2.2, HDCP 1.4
Max transmission

rate

 18Gbps


Resolution

 1280×720, 1280×960, 1366×768,

1440×900, 1680×1050, 1920×1080,

1920×1200, 720p@50/60Hz,

1080i@50/60Hz, 1080p@24/25/30/50/60/

120Hz, 2560×1440@50/60/120/144Hz,

3840×2160@24/25/30/50/60/100/120Hz,

4096×2160@24/25/30/50/60Hz
TMDS signal 0.7~1.2Vp-p (TMDS)
DDC signal 5Vp-p (TTL)
Transmission distance CAT6/6A/7 4K@60Hz≤60m

2560×1440@120/144Hz ≤30m

4K@100/120Hz≤25m
Audio formats PCM, DTS, Dolby
HDR10 Supported
HDMI 3D Supported
EDID passthrough Supported, auto downscaling


Operating environment

 Working temperature -20~55℃
Storage temperature -30~60℃
Humidity 0~90%RH (no condensation)


Physical properties

 Material ABS
Color Black
Dimension 71.5 (L) x 26.0 (W) x 15.0 (H) mm



Physical properties Dimension 67 (L) x 40 (W) x 23 (H) mm
Weight TX: 85g  RX: 72g
