ALF-TRUK100-RS

Categories: , ,

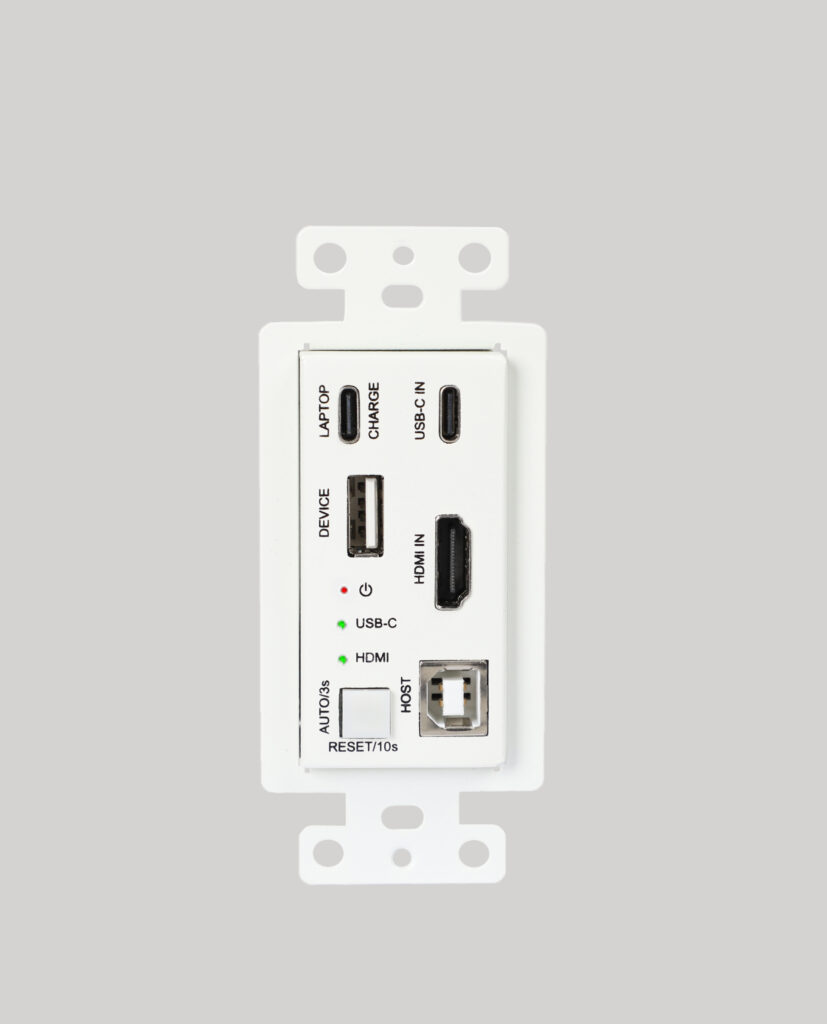

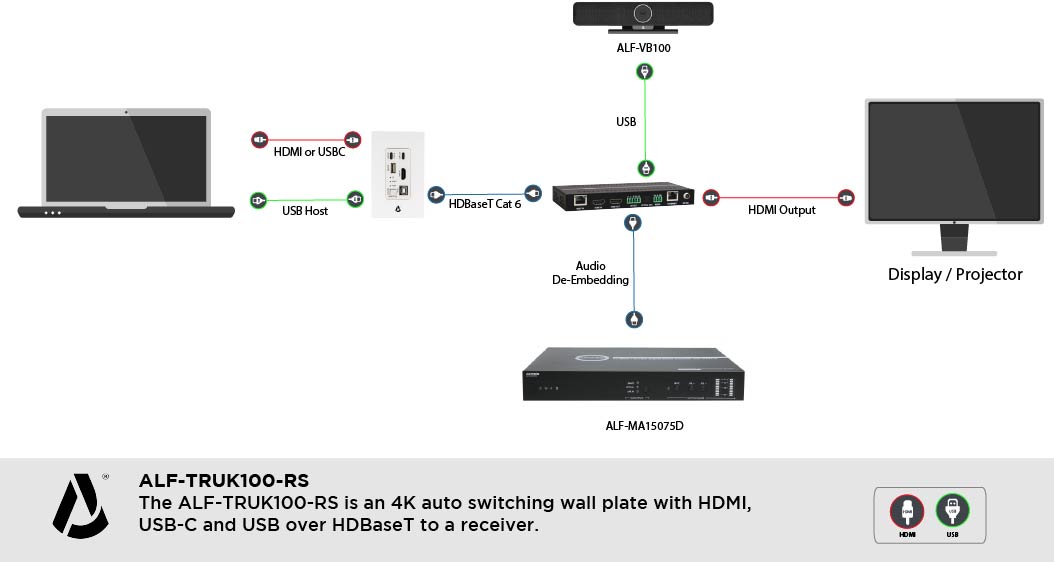

The ALF-TRUK100-RS is an HDBaseT wall plate extender kits for video (Max 4K@60 4:4;4), audio, USB2.0, RS232 control signal and Ethernet over distances max up to 100m.t includes USB2.0 and USB-C host interfaces, plus a USB2.0 interface for a peripheral devices such as speakerphone, video camera, microphone, or keyboard and mouse with the charging function. The transmitter features a US one-gang, wall plate form factor, and includes one white face plate.

Features:

  • Extend USB-C, 0 & USB2.0 signal over HDBT2.0
  • HDMI 0, 18G, 4K@60 4:4:4, HDCP 2.2 and backward compatible
  • Transmission distance at 4K@60 4:4:4 Max up to100m ( CAT6 STP cable)
  • 0 bandwidth rate max up to 480M/bps
  • USB-C supports 4K@60 4:2:0
  • USB-C charging port, Max supports 100 W PD, to charge the connected PC

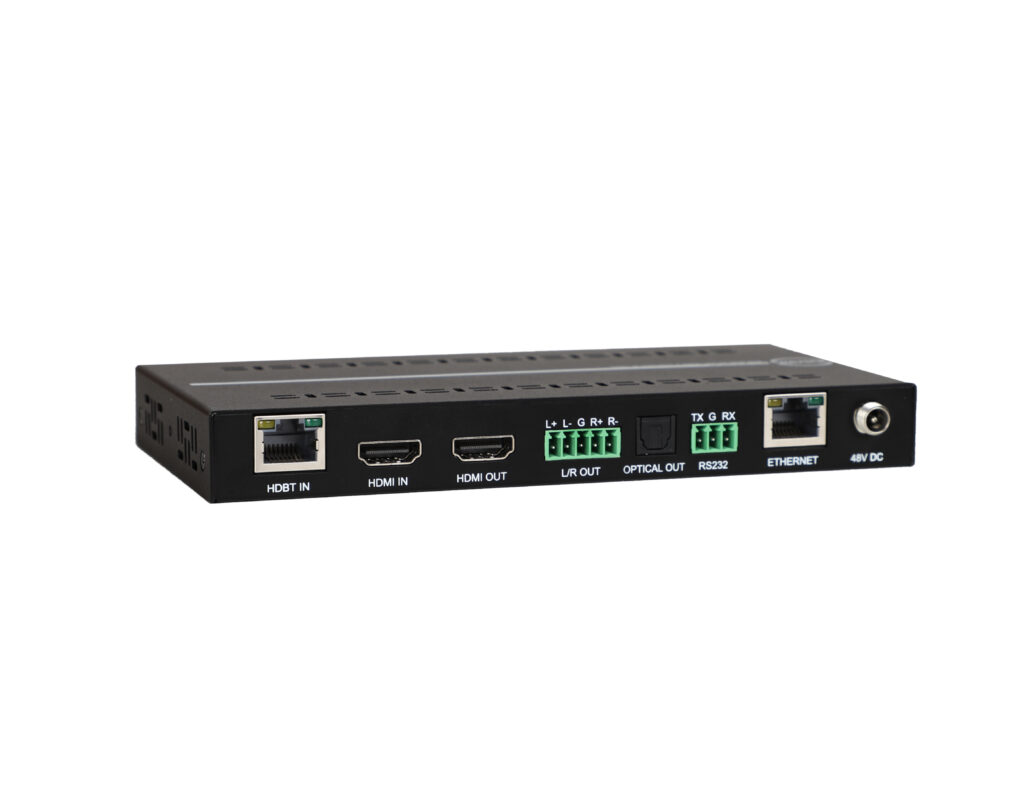

  • HDMI In on Rx for BYOD devices and with Auto-sw control
  • De-embedded audio (analog and optical) at Rx
  • RS232 pass through from Tx to Rx
  • Supports Auto SW and manual mode via button
  • Support 48v PoC function (only from Rx to Tx)
  • EDID & HDCP management on Dip switch
  • Support 3D, HDR10 and Dolby Vision
  • Ethernet port for USB-C or USB-B Ethernet usage and support Ethernet ON/OFF control

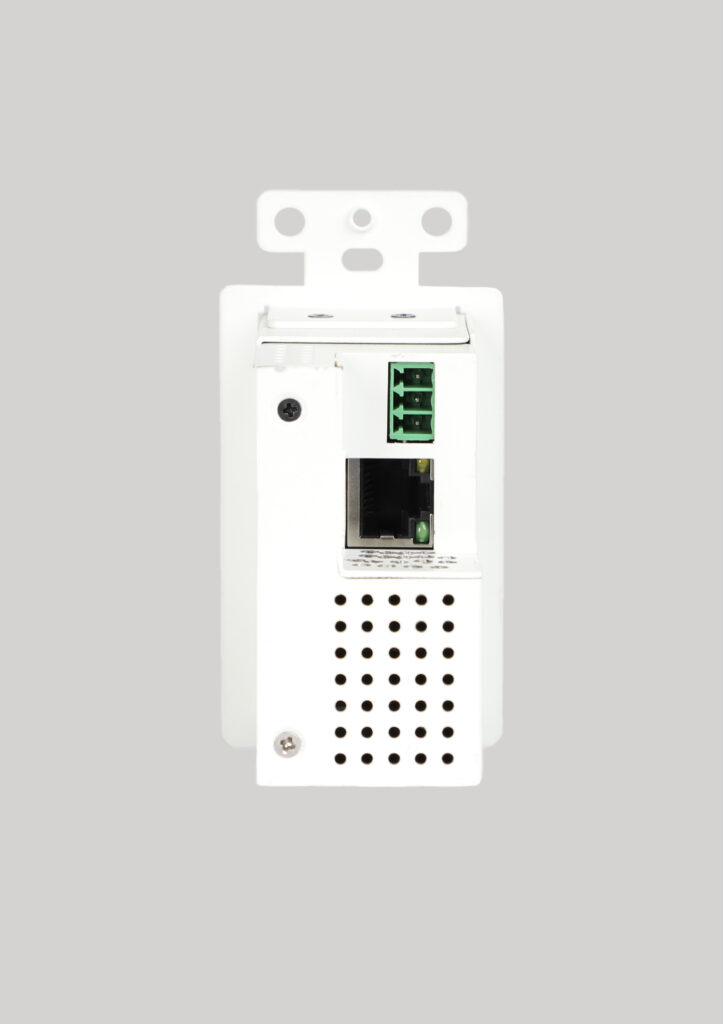

  • US one-gang enclosure for Decora-style at Tx
  • Standard ALFATRON RS232 code format

Specification

HDMI Input  1. HDMI V2.0, supports resolution up to 4K@60Hz 4:4:4, HDR 10 and Dolby Vision.

2. Supports up to LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.
USB-C  1. Supports up to 4K UHD 60Hz 4:2:0.

2. Supports charging Max up to 100W PD
HDMI Output  1. HDMI V2.0, supports resolution up to 4K@60Hz 4:4:4, HDR 10 and Dolby Vision.

2. Supports up to PCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™.



3. Downscaling



Input  Output
Resolution  Refresh  Colour Space  Downscale  1080p Specs
4K  60Hz  4:4:4  Support  1080p@60Hz 4:4:4
4K  50Hz  4:4:4  Support  1080p@50Hz 4:4:4
4K  30Hz  4:4:4  Support  1080p@30Hz 4:4:4
4K  25Hz  4:4:4  Support  1080p@25Hz 4:4:4
4K  24Hz  4:4:4  Support  1080p@24Hz 4:4:4
4K  60Hz  4:2:0  Support  1080p@60Hz 4:4:4
4K  50Hz  4:2:0  Support  1080p@50Hz 4:4:4
4K  30Hz  4:2:0  Support  1080p@30Hz 4:4:4
4K  25Hz  4:2:0  Support  1080p@25Hz 4:4:4
4K  24Hz  4:2:0  Support  1080p@24Hz 4:4:4




Distance  1: 4K@60 444 at 80m for Cat5e/cat 6 UTP cable

2: 4K@60 444 at 100m for cat 6 STP cable
HDCP Management  1. Input: HDCP 2.2 and 1.4 compliant. Output: Manageable (Default follow the display).

2. Follow the source.

3. Follow the display. For example: it will output HDCP 1.4 when source is HDCP 2.2 when connect to HDCP 1.4 display. It will not turn off HDCP if display does not support HDCP.

Note: will provide one hidden command to turn on/off.


Audio Output  1: To 5 Pin phoenix balanced output

2: To optical output
USB2.0  1: Max up to 480mbps

2: HOST x1 on Tx & USB-A (5V, 1A) on Tx

3: USB-A x 1 (5V, 2A), USB-A x (5V, 500Ma), USB-A x 1 (FW upgrade & 5V, 500Ma)
RS232  1. To control the sources switching and the default baud rate is 9600.

2. Works with Rx, for RS232 pass through
CEC  Supports CEC pass through (only from HDMI IN from Tx to HDMI OUT on Rx)
EDID

Management
  1. Copy the display’s EDID.
  1. Use the built-in EDID (16 EDID in total, will provide when project start)
Ethernet Port  1. USB-C or USB-B can access to Ethernet

2. ON/OFF control according to the actual requirements
Firmware  The firmware can be updated by RS232 or USB-A on Rx
