ALF-WU6-8K

Category:

Description

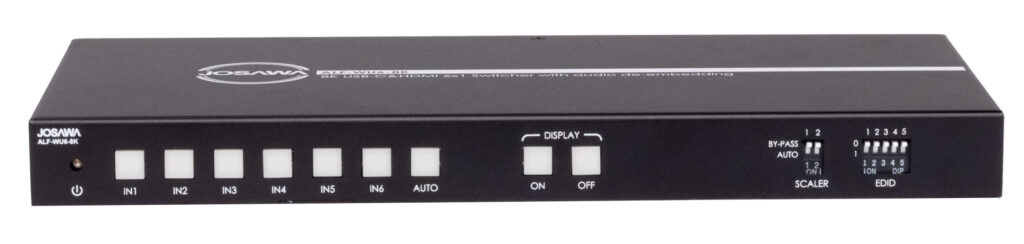

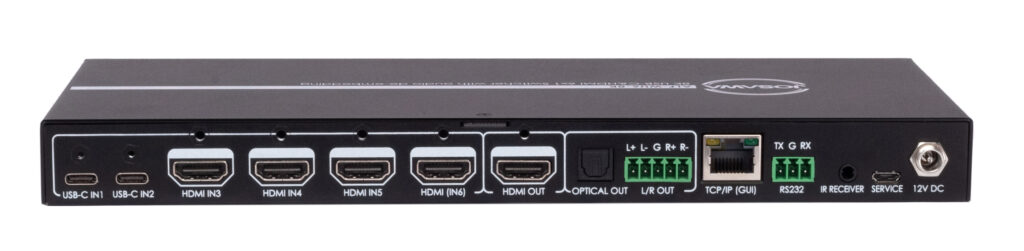

The ALF-WU6-8K is an HDMI2.1 switcher and scaler , with 4 HDMI & 2 USB-C inputs and one HDMI output.
It is Full HDMI 2.1, FRL 48Gbps, and HDR support ensure stable signalling even at the highest bandwidths, HDCP 2.3 compliant. This switcher includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status.

Product Features

• HDMI2.1, HDCP2.3 compliant
• USBC DP 1.4 (32.4 Gbps)
• 40Gbps Bandwidth (FRL 5)
• Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4K 120Hz
• EDID management via 5 pin DIP switcher, with the source through a display’s EDID or internally stored EDID
• De-embedded audio: 1 x balanced, 1 x Optical
• Downscaling from 8k to 4k or 1080p to the legacy displayers
• RS232, IR and GUI control



Specifications

VIDEO
Video Resolution Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
HDR Formats 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG
Color Space YUV (Component), RGB

(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Supported
Deep Color Up to 16 bit
Scaling By-pass or AUTO Scale & 8k to 8k or 4k, 4k to 1080p
AUDIO
HDMI Audio PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Optical LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio
Analog (Balanced) PCM 2.0 CH
HDCP




HDCP Management

 Input: HDCP 2.3 and backward compatible
Output: Manageable (Default follow the display).

For example: it will output HDCP 1.4 when source is HDCP 2.3 or 2.2 when connect to HDCP 1.4 display. It will turn off HDCP if display does not support HDCP.
Can turn off HDCP by DIP switch compulsory








Downscaling Capability

 1: “By-PASS” status: it will pass through whatever from inputs to outputs without any processing
2: “AUTO” Status, rules as below:



2.1 : If the source is 8K, the displayer is 4K, then it can downscale to 4K

2.2 : If the source is 4K, the displayer is 1080p, then it can downscale to 1080p



3: Scale limitation



3.1 : Can’t downscale from 8K to 1080p, If the source is 8K, but the displayers, Max supports 1080p, it will have black screen; But, if the source is 4K, the displayers, max support 1080p, it will output 1080p;

3.2 : Can’t support 720p or lower resolutions.
EDID

Management

 Provided when project starts
GUI Provided when project starts
USB The firmware can be updated

Resources

Brochure

User Manual ( Coming soon)
