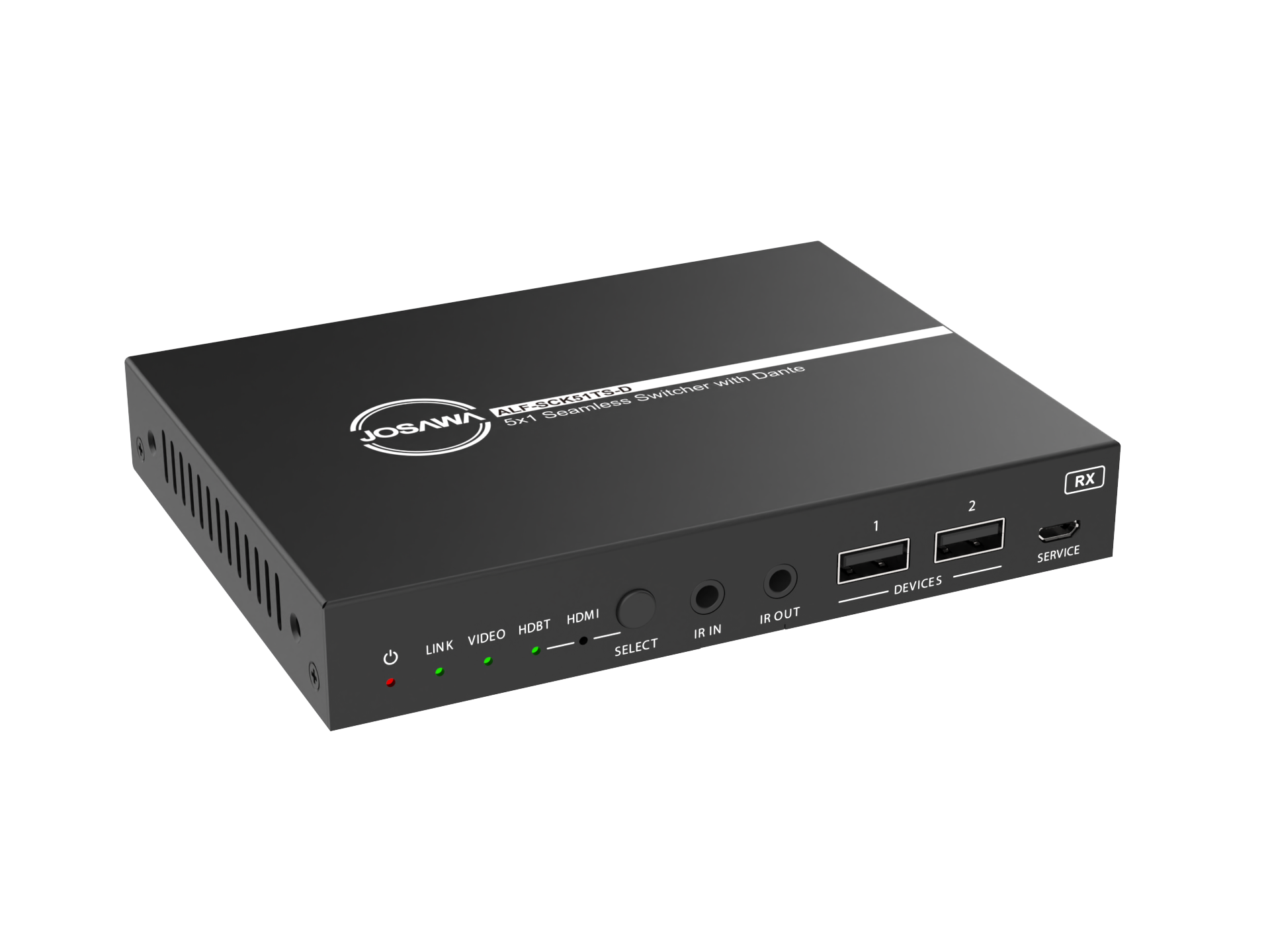

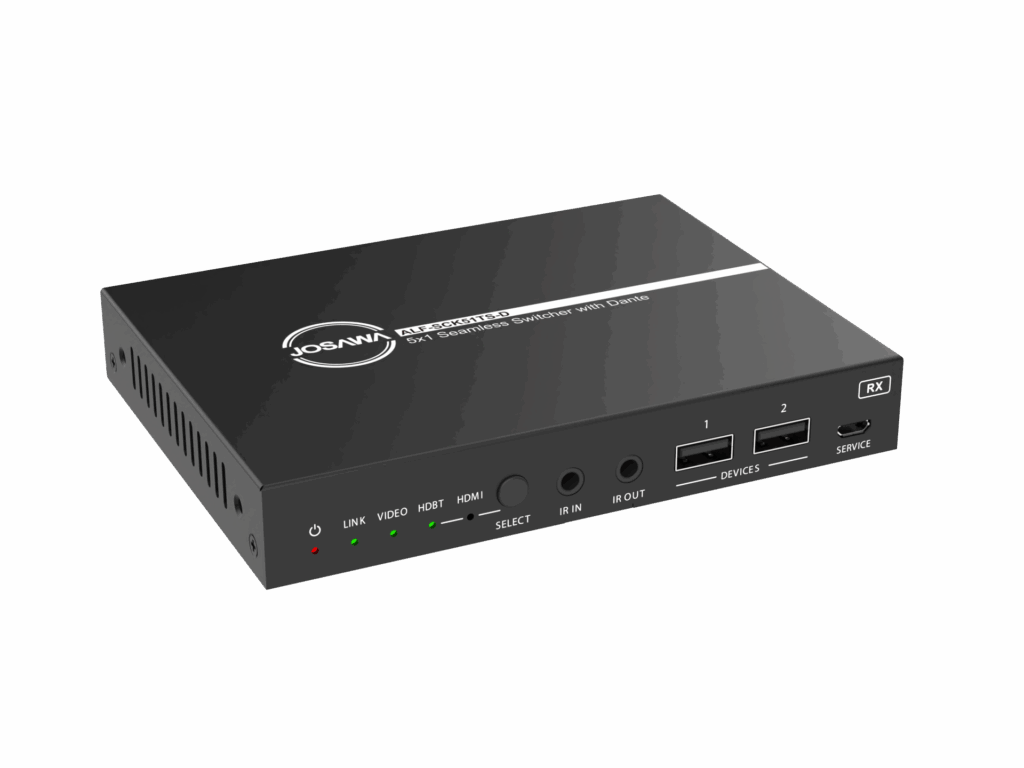

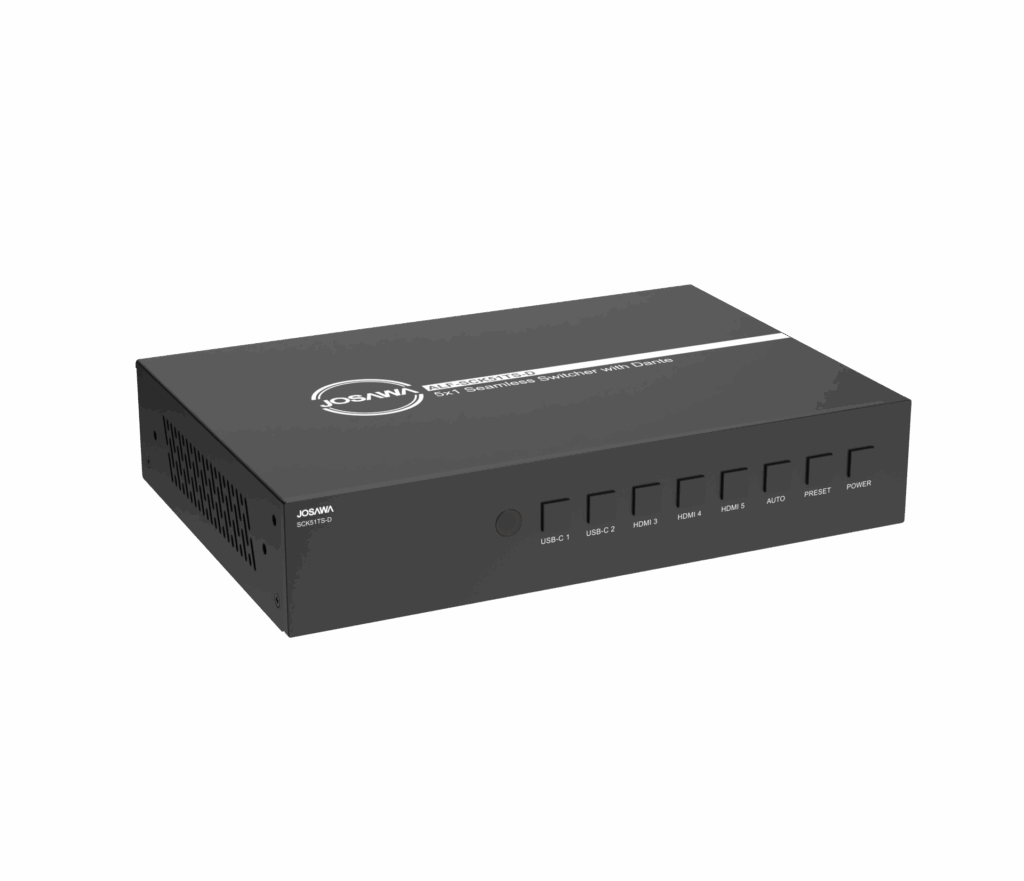

ALF-SCK51TS-D(Coming Soon!)

Category:

Description

The ALF-SCK51TS-D is a 5 x 1 seamless presentation switcher supports video resolutions up to 4K@60Hz 4:4:4 8bitdeep color and HDCP 2. 2 compliant , it features multi view function for multi sources can be displayed on single screen. This switcher supports HDMI and HDBT mirrored output s and HDBT
extending uncompressed 4K up to 132ft/40m or 1080P up to 2 30ft/ 7 0m via single Cat6a cable.

This switcher has five video inputs: two USB C and t hree HDMI inputs . Each USB C input
support s A LT DP mode up to 4K@60Hz 4:4:4 8bit deep color USB 2 .0 data and 60W power
charging to USB C source device . It also features e thernet over USB C functionality to allow
USB C source device to access internet seamlessly. Local USB KVM switching and extending
USB 2.0 over HDBT can be allow ed to connect external USB 2.0 devices or cameras for video
conference.

This switcher ha s built in Dante audio input and output interface, and it can be seamlessly
connected to any existing audio processing system with Dante enabled
This
switcher can be controlled via front panel buttons , remote control, API commands using
RS 232 or TCP/IP A Web server / GUI is built in that features A/V control, automatic display
control and input EDID management. The product is ideal for software based video
teleconference rooms

Features:

  • HDMI 2.0b, HDCP 2. 2 , 18Gbps 4K@ 6 0Hz 4:4:4
  • 5 x 1 seamless switching and multi viewer
  • Input: 2x USB C , 3 x HDMI , 1x Analog audio , 1x Dante 2ch
  • Output: 1 x HDMI and 1x HDBT mirrored , 1x Analog audio , 1x Dante 2ch
  • Auto or manual switching mode
  • HDMI and HDBT mirrored outputs
  • USB C supports ALT DP mode for A/V , USB 2 .0, 100M ethernet and 60W charging
  • Local U SB 2 .0 KVM switching and extending USB 2.0 over HDBT 3.0
  • Uncompressed 4 K over HDBT 3.0 up to 132ft/40m via single Cat6a cable
  • Uncompressed 1080P over HDBT 3.0 up to 230ft/70m via single Cat6a cable
  • POE over HDBT to power RX from TX
  • Audio embedded and de embedded
  • Audio DSP for gain, equalizer , volume and delay
  • Dante 2×2 audio input and output
  • CEC /RS 232 control external device ON/OFF
  • EDID management

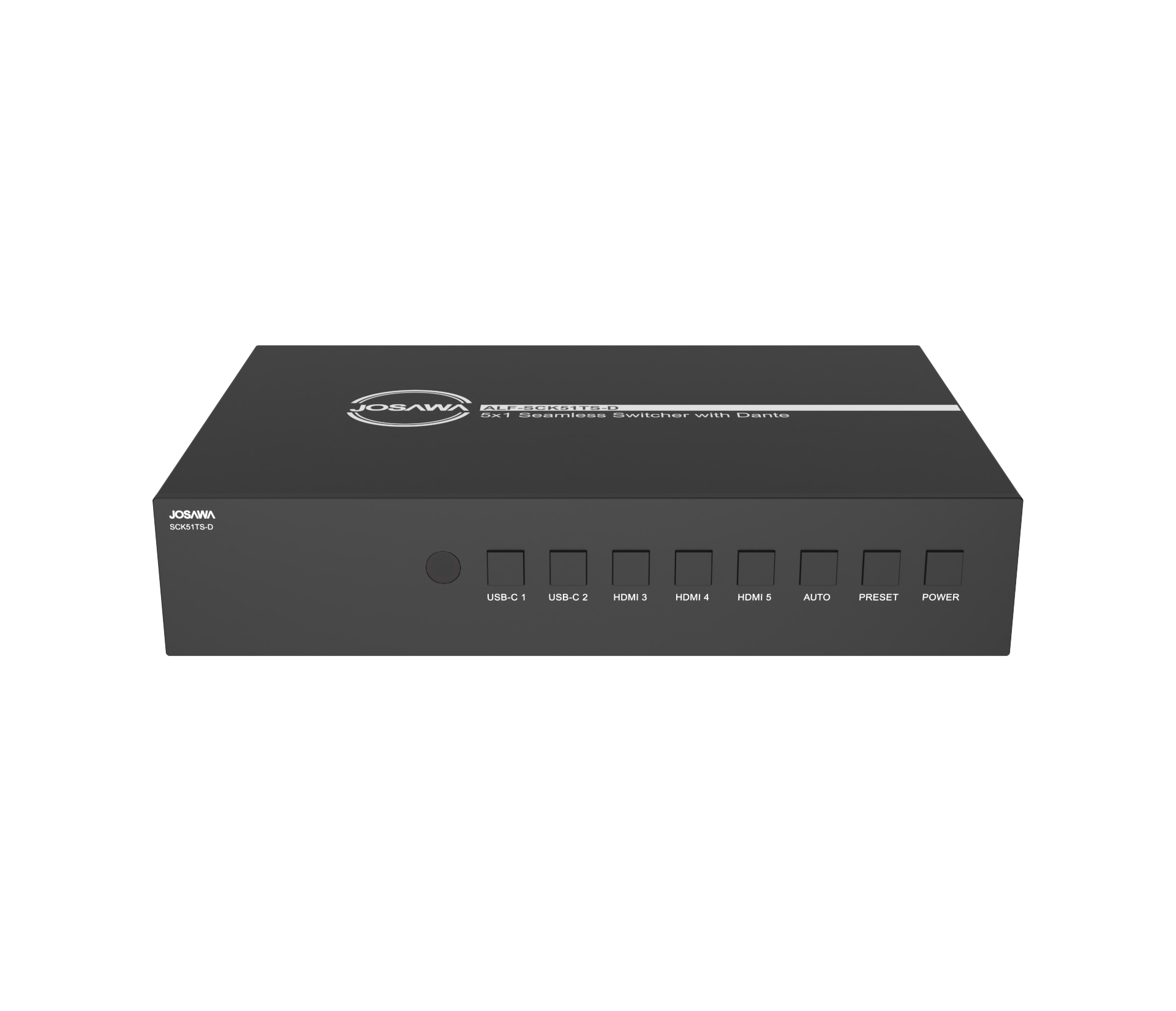

  • Front panel button, remote control, RS 232 , TCP/IP and Web GUI control

Specifications

Video
Input Video Port 2x USB-C IN (Type C)

3x HDMI IN (Type A)

Input Video Type USB-C/DP 1.2 up to 4K60 4:4:4/HDCP 2.2

HDMI 2.0b up to 4K60 4:4:4/HDCP 2.2













Input Video Resolutions

640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz,

1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz,

720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59),

720x576i50Hz(576i50), 720x576p50Hz(576p50),

1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59),

1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50),

1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60),

1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24),

1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29),

1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50),

1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60),

3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24),





3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29),

3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50),

3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60),

4096x2160p23.98Hz, 4096x2160p24Hz,

4096x2160p25Hz, 4096x2160p29.97Hz,

4096x2160p30Hz, 4096x2160p50Hz,

4096x2160p59.94Hz, 4096x2160p60Hz

Input Video 0.5 to 1.2 V p-p
Input DDC Signal 5 V p-p (TTL)
Video Impedance 100 ohms
End-to-End Time

Latency

1 frame latency
Output Video Port 1x HDMI OUT (Type A)

1x HDBT OUT (RJ45)

Output Video Type HDMI 2.0b up to 4K60 4:4:4/HDCP 2.2 HDBT 3.0 up to 4K60 4:4:4/HDCP 2.2




Output Video Resolutions

1024x768p60Hz, 1280x720p50Hz, 1280x720p60Hz, 1280x800p60Hz,

1360x768p60Hz, 1920x1200p60Hz,

1920x1080p50Hz(1080p50), 1920x1080p60Hz(1080p60),

3840x2160p25Hz(2160p25), 3840x2160p30Hz(2160p30),

3840x2160p50Hz(2160p50), 3840x2160p60Hz(2160p60),

4096x2160p50Hz, 4096x2160p60Hz

Audio




Input Audio Port

2x USB-C IN (Type C)

3x HDMI IN (Type A)

1x Analog IN (5-pin 3.5mm phoenix 3.5) 1x Dante IN (RJ45)



Input Audio Format

HDMI/USB-C: PCM 2ch, up to 24 bits @ 32-192 kHz Analog: Balanced/unbalanced 2ch, max input level 2VRMS

Dante: PCM 2ch, up to 24 bits @ 44.1-96 kHz





Output Audio Port

1x HDMI OUT (Type A)

1x HDBT OUT (RJ45)

1x Analog OUT (5-pin 3.5mm phoenix 3.5) 1x Dante OUT (RJ45)



Output Audio Format

HDMI/HDBT: PCM 2ch, up to 24 bits @ 32-192 kHz Analog: Balanced/unbalanced 2ch, Max input level 2VRMS

Dante: PCM 2ch, up to 24 bits @ 44.1-96 kHz

HDBT
Specification HDBT 3.0 (VS300R)
Date Rate 16 Gbps (4K uncompressed)
Distance 4K60 4:4:4 up to 132ft/40m via Cat6a cable

4K30 4:4:4/1080P up to 230ft/70m via Cat6a cable

USB


Input Port

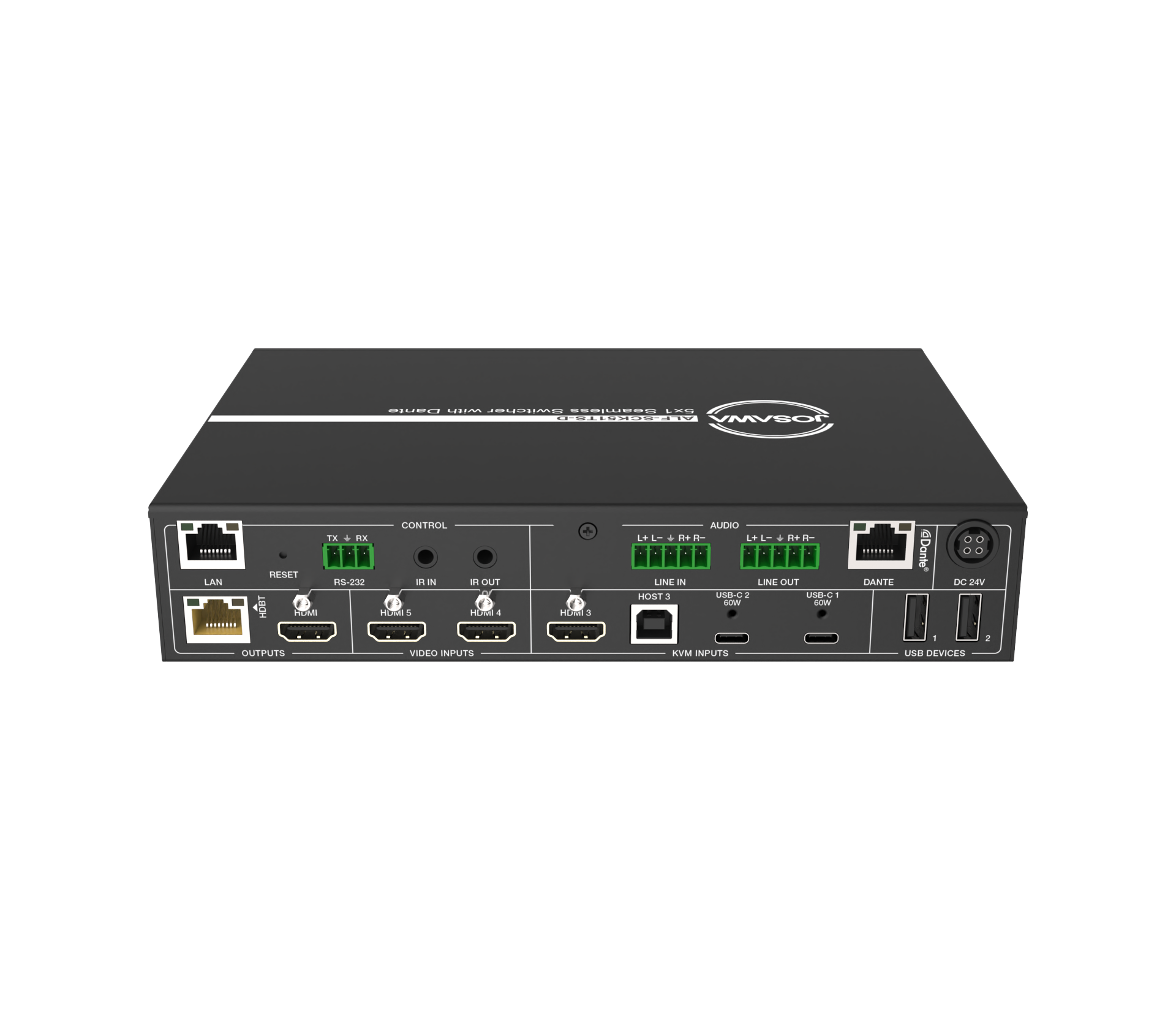

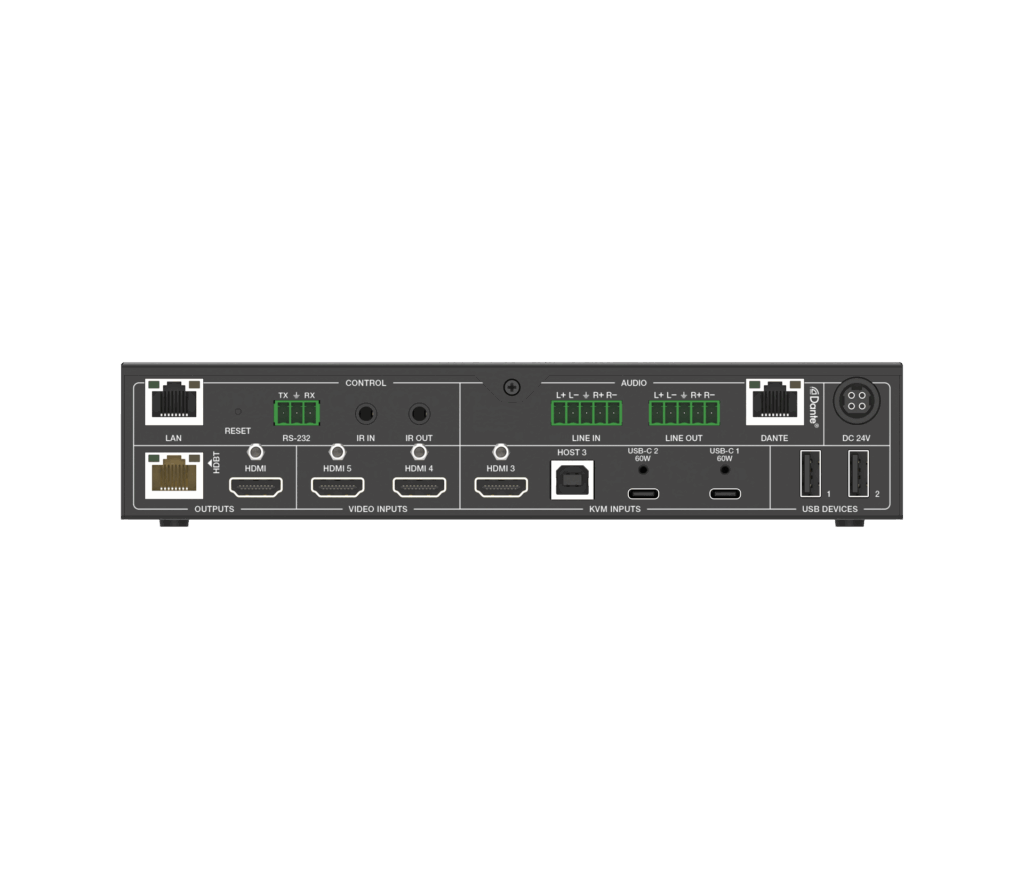

2x USB-C IN (USB 2.0 Type C on TX rear panel) 1x USB HOST (USB 2.0 Type B on TX rear panel)

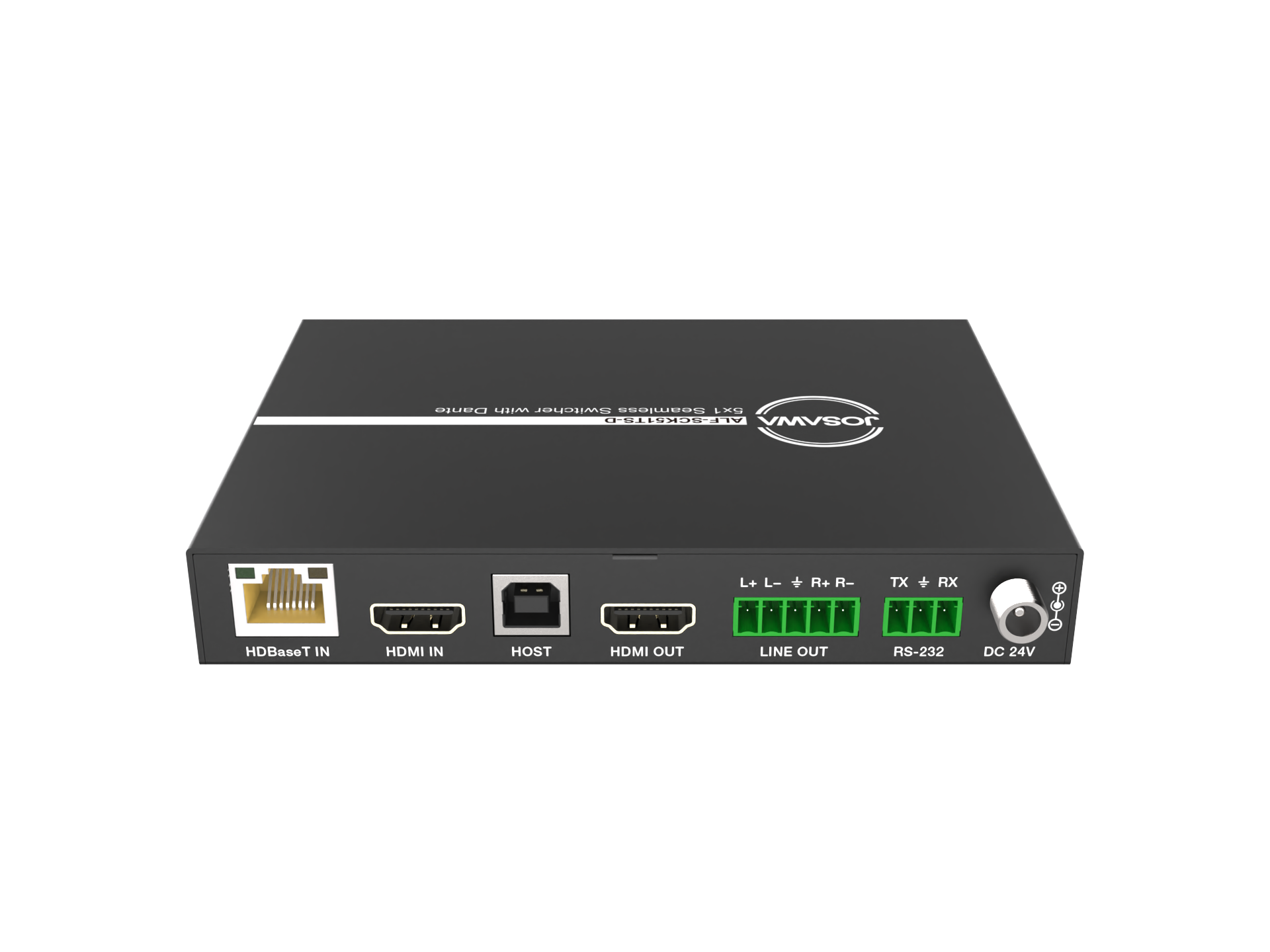

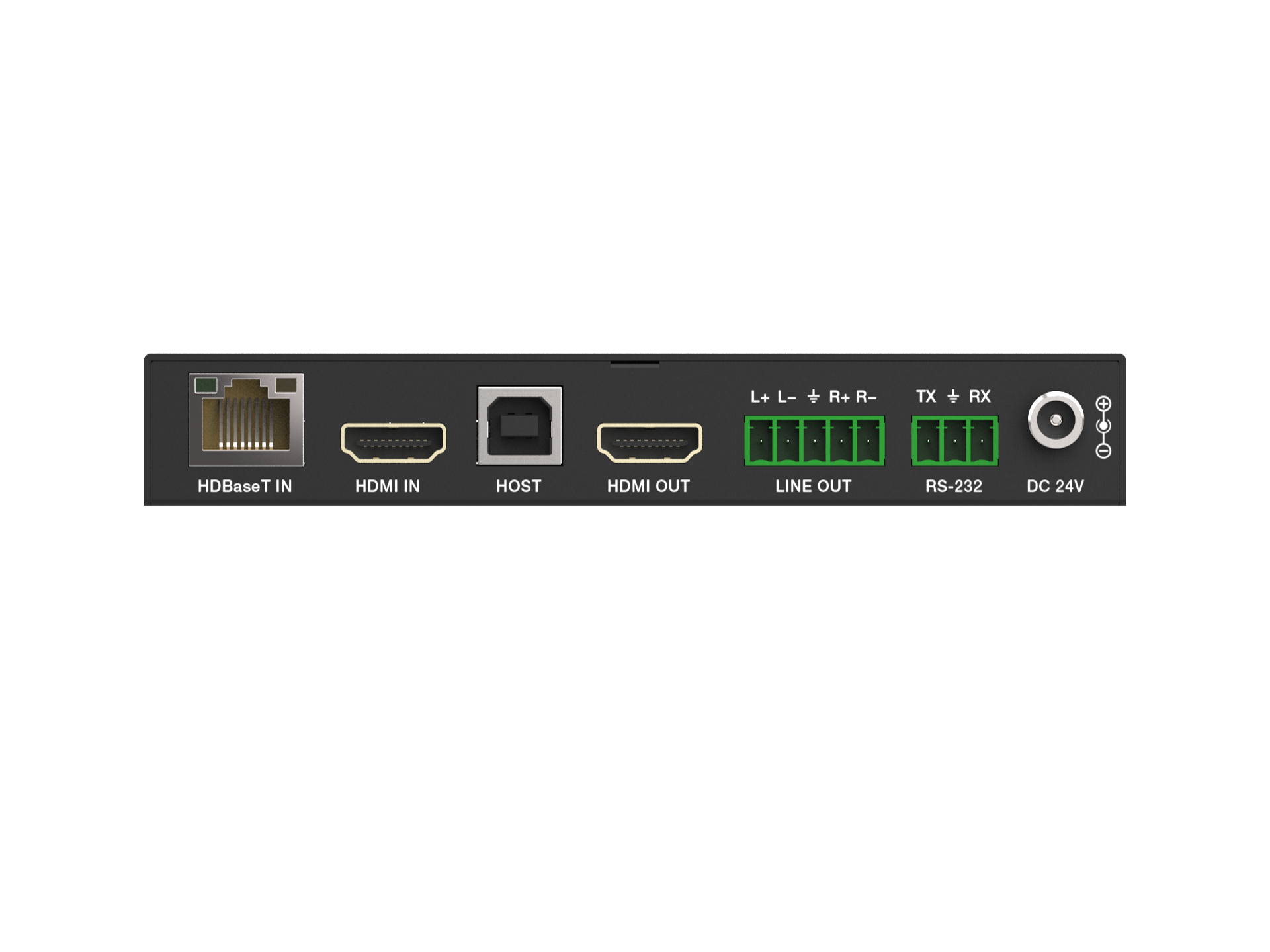

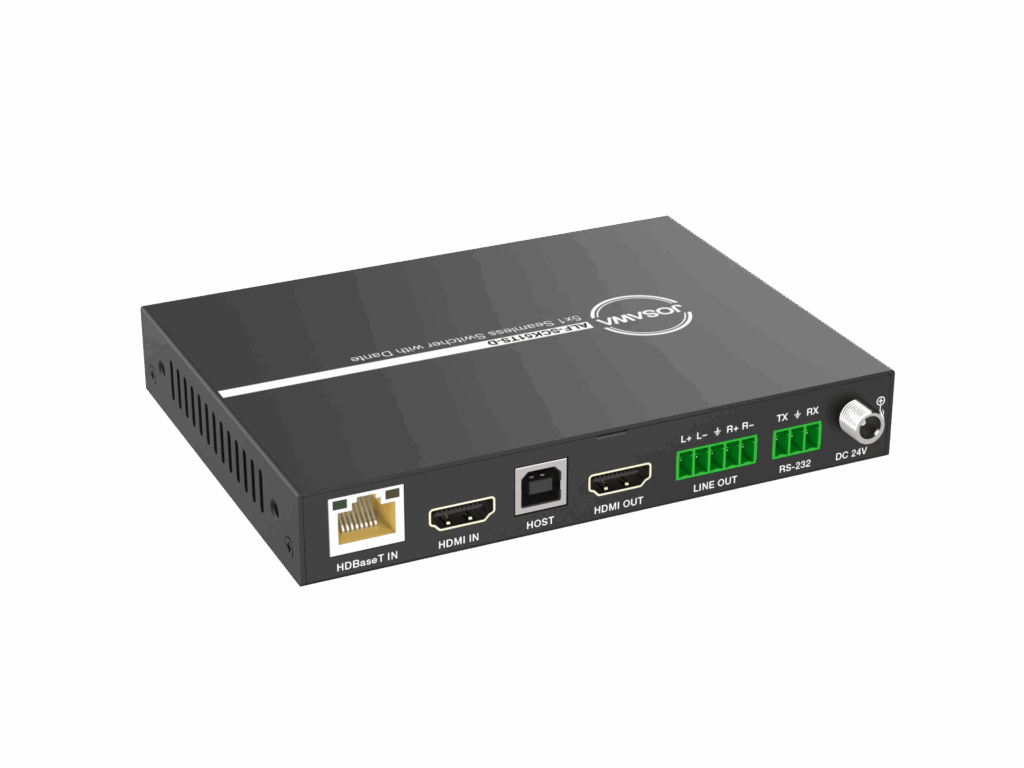

1x USB HOST (USB 2.0 Type B on RX rear panel)





Output Port 2x USB DEVICES (USB 2.0 Type A on TX rear panel)

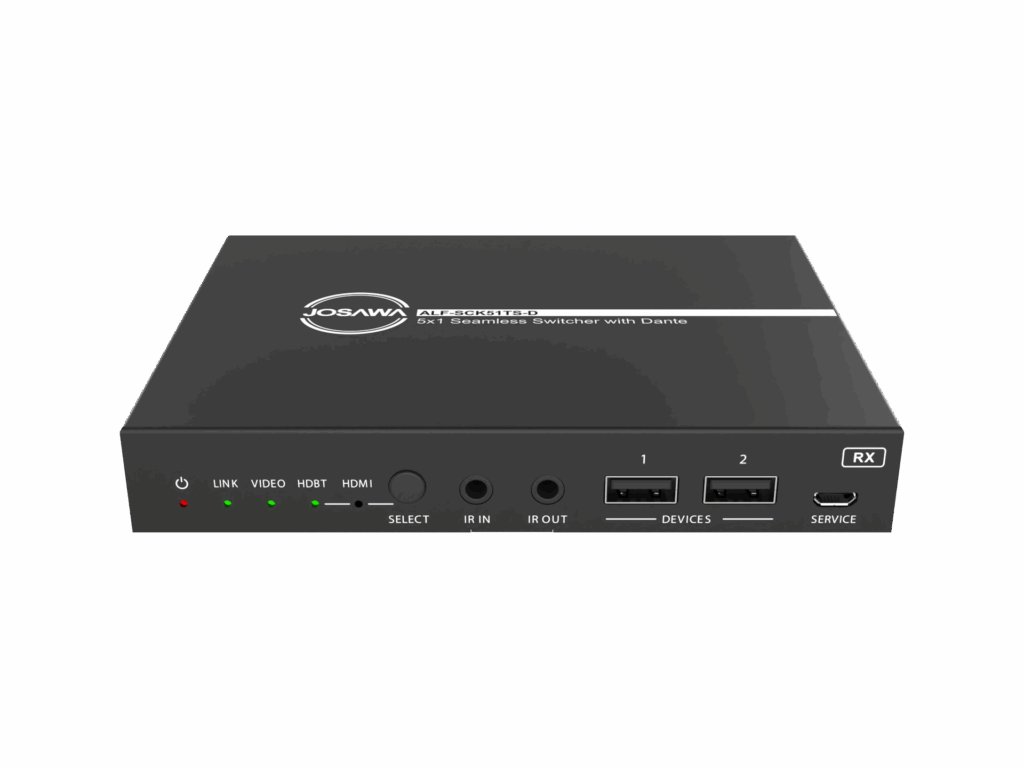

2x USB DEVICES (USB 2.0 Type A on RX front panel)

Specification USB 2.0
Date Rate Local USB 2.0 devices up to 480Mbps

Remote USB over HDBT up to 350Mbps

Mode USB 2.0 Hub and USB 2.0 Pass-through
RS-232
Signal Level -15 ~ +15 V p-p (RS-232 level)
Baud Rate Up to 115200 bps
Mode Pass-through, Guest mode, API control
IR
Signal Level 12 V p-p
Bandwidth 20KHz ~ 60KHz
Mode Pass-through, Guest mode
Control
Control Method Button, RS-232, TCP/IP, Web GUI
Mechanical
Housing Metal Enclosure (iron)
Color Black
General
Operating Temperature 32 to 113° F (0 to 45° C)
Storage Temperature -4 to +140° F (-20 to +70° C)
Operating Humidity 10 to 90%, non-condensing
Storage Humidity 10 to 90%, non-condensing
Power 24 VDC, 8A Locking power supply
Power Consumption

(Maximum)

150 W
ESD Protection Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
Surge Protection Voltage: ±1 kV
Dimensions TX: W x D x H (220mm x 150mm x 44mm)

RX: W x D x H (140mm x 105mm x 21.5mm)

Weight TBD
Certifications CE, RoHS compliant
