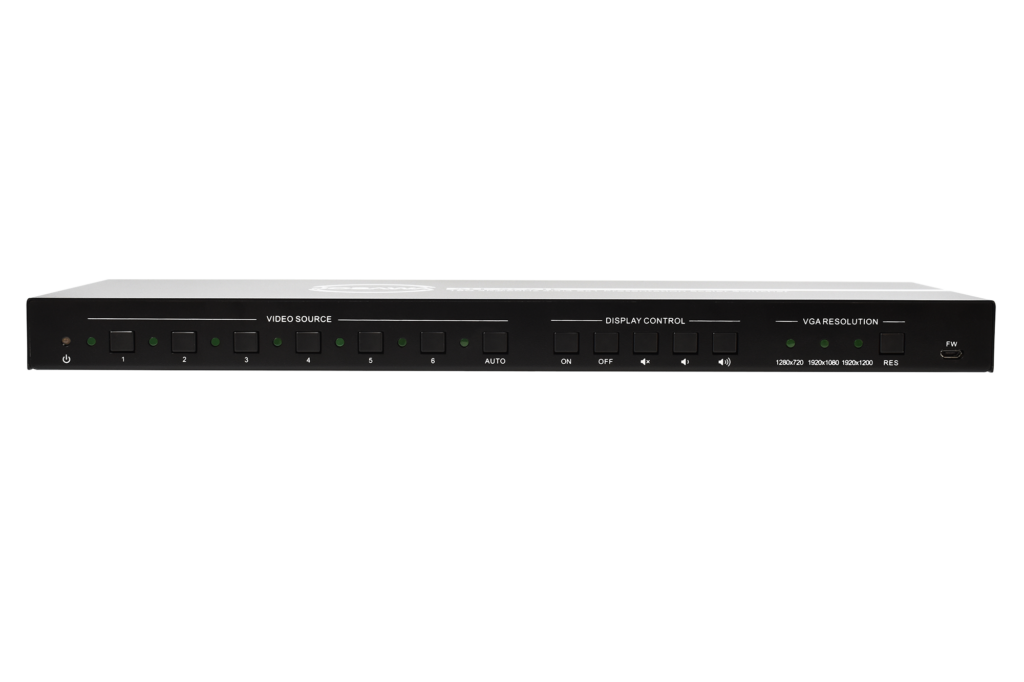

The ALF-SC61E 18G switcher allows selection of six different sources (three HDMI inputs, one USB-C input, one DisplayPort input, and one VGA input), and will switch the selected input to the HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is the built-in smart EDID setting that can be selected via the 4-pin DIP switch on the rear panel.  The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to an optical digital audio output, as well as a balanced analog audio output.The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch from input 1 through to 6 searching for a source.  The switcher can be manually controlled via the front panel buttons, IR remote, and RS232. CEC allows the display device to be controlled via the front panel buttons, and RS232 CEC commands.

Product Features

  • Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4 8bit, 1080P, and 3D
  • 18Gbps high bandwidth and supports HDR 10
  • HDCP 2.3 compliant
  • Supports automatic switching
  • CEC control for display volume and ON/OFF
  • Controllable via RS232 and IR
  • VGA resolution is selectable on the front panel
  • Optical and balanced analog audio for audio de-embedding
  • Smart EDID management for various application and customized setting

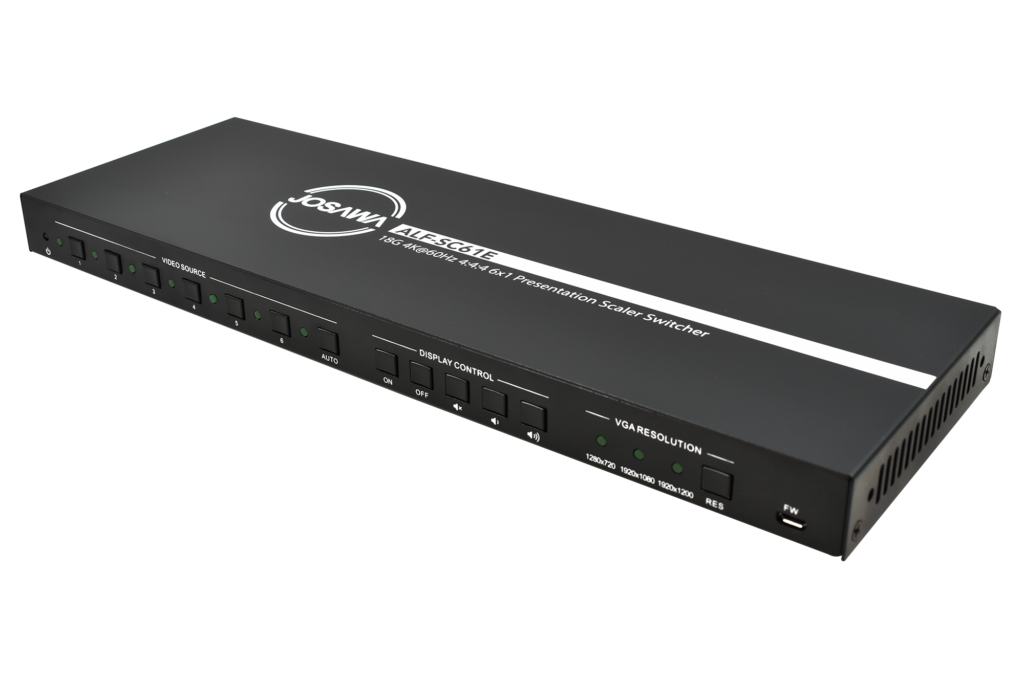

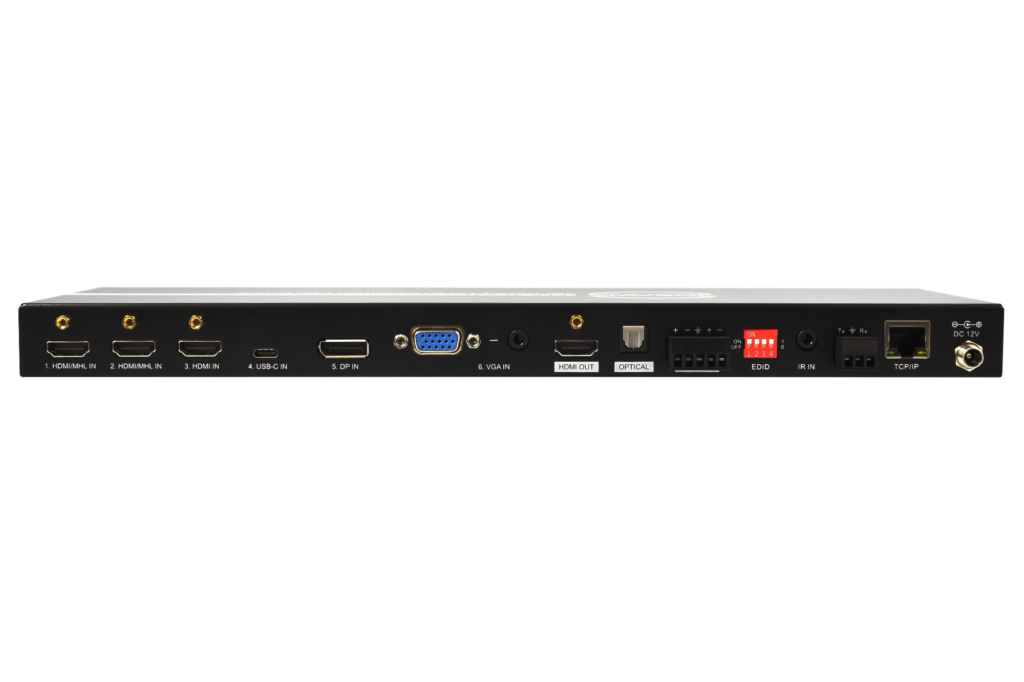

Video Input  (2) HDMI/MHL, (1) HDMI, (1) USB-C, (1) DP, (1) VGA

Video Input Connector

(3) Type-A female HDMI, (1) Type-C USB 3.0,

(1) DisplayPort, (1) 15-pin female VGA

HDMI Input Resolution  Up to 4Kx2K@60Hz 4:4:4 8bit
MHL Input Resolution  Up to 1080P@60Hz
USB-C Input Resolution  Up to 4Kx2K@30Hz
DP Input Resolution  Up to 4Kx2K@60Hz 4:4:4 8bit
VGA Input Resolution  Up to 1920×1200@50/60Hz
Video Output  (1) HDMI
Video Output Connector  (1) Type-A female HDMI
HDMI Output Resolution  Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Version  2.0
HDCP Version  2.3
MHL Version  2.2
DP Version  1.2
HDR 10  Supported
CEC  Supported
HPD  Supported
Audio Output  (1) OPTICAL, (1) Stereo balanced L/R
Audio Output Connector  (1) Toslink connector, (1) 5-pin terminal block

HDMI Audio Format

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®

Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through.

DP Audio Format  8 channels LPCM, up to 24bit 192Khz, AC3, DTS
Stereo analog L/R audio Format  PCM
Toslink Digital Audio Format  PCM, Dolby Digital, DTS, DTS-HD

Max Output Level

2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV)

nominal consumer line level signal

THD+N  <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS
  level (or max level)
SNR  >80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation  >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation  < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)

Frequency Response Deviation


<±0.5dB 20Hz ~ 20KHz

Output Load Capability  1KΩ and higher (supports 10x paralleled 10KΩ loads)
Stereo Channel Separation  >70dB@1KHz
Control Part
Control  (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP

Control Connector

(1) Micro-USB, (1) 4-pin DIP switch, (1) 3.5mm mini jack, (1)

3-pin terminal block, (1) RJ45



HDMI 2.0 Cable Length

4K@60Hz 4:4:4 ≤ 5m,

4K@60Hz 4:2:0 ≤ 10m,

1080P ≤ 15m

Bandwidth  18Gbps
Operation Temperature  -10~ +55
Storage Temperature  -25~ +70
Relative Humility  10%-90%
External Power Supply  Input: AC 100~240V, 50/60Hz, Output: 12V DC 2A
Power Consumption  10W (Max)
Dimension (W*H*D)  342.5mm x 26mm x 115mm
Net Weight  620g



Technical Sheet

User Manual

3rd Party Control

ALF-SCU61E – Crestron Driver


1)Q – What is the ALF-SC61E?

A – It is a 6 x 1 Scaler Switcher.

2)Q – What inputs does the unit support?

A – 3 x HDMI, 1 x USB-C, 1 x DisplayPort and 1 x VGA inputs.

3)Q – How is the unit controlled?

A – Via IR, RS232, TCP/IP and via the front panel buttons

4)Q – Does the unit support audio?

A – Yes, the device has a TOSLINK and Balanced Stereo output.

5)Q – Is the EDID matchable?

A – Yes, there is an EDID DIP switch default is EDID pass-through
