ALF-MUK88A-N (Gen2)
Josawa ALF-MUK88A-N(Gen2)
The ALF-MUK88A-N 18Gbps is an 8×8 HDMI Matrix which supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4), and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8×8 HDMI Matrix supports 4K2K to 1080P downscaling independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.
Product Features
- • HDMI 2.0b, HDCP 2.2, and HDCP 1.4 compliant
• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
• Support 18Gbps video bandwidth
• Dolby Vision, HDR10+ and HLG are supported.
• Support 4K->1080P Down Scaler for each output port
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Audio de-embedded is supported via analog and coax ports
• ARC, CEC and smart EDID management are supported

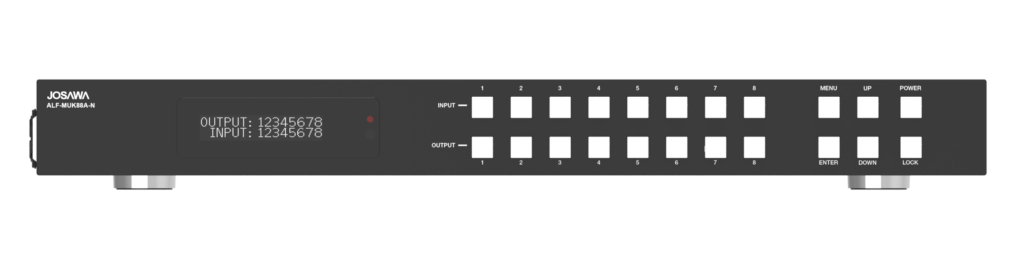

• 1U rack mounted design with front panel OLED display
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Specifications
| Technical | |||
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit | ||
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 | ||
| L/R Audio Formats | PCM2.0 | ||
| HDR formats | HDR10, HDR10+, Dolby Vision, HLG | ||
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge), ±4kV (Contact discharge) |
||

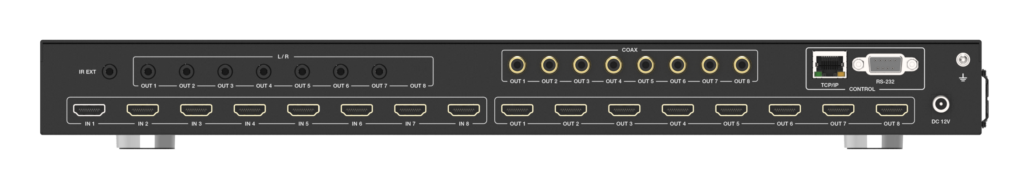

| Connection | |||
| Input Ports | 8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack] | ||
|
Output Ports |
8×HDMI Type A [19-pin female] 8×Coax Audio (RCA)
8×L/R Audio [3.5mm Stereo Mini-jack] |
||
| Control Ports | 1×TCP/IP [RJ45]
1×RS-232 [D-Sub 9] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | ||
| Weight | 2.8kg | ||
| Power Supply | Input: AC 100 – 240V 50/60Hz
Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) |
||
| Power Consumption | 43W | ||
| Operating Temperature | -10°C ~ 45°C / 14°F ~ 113°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20~90% RH (non-condensing) | ||
| Resolution / Cable length | 4K60 –
Feet / Meters |
4K30 –
Feet / Meters |
1080P60 –
Feet / Meters |
| HDMI IN / OUT | |||
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
