ALF-250W-UB

Categories: , , ,

ALF-250W-UB

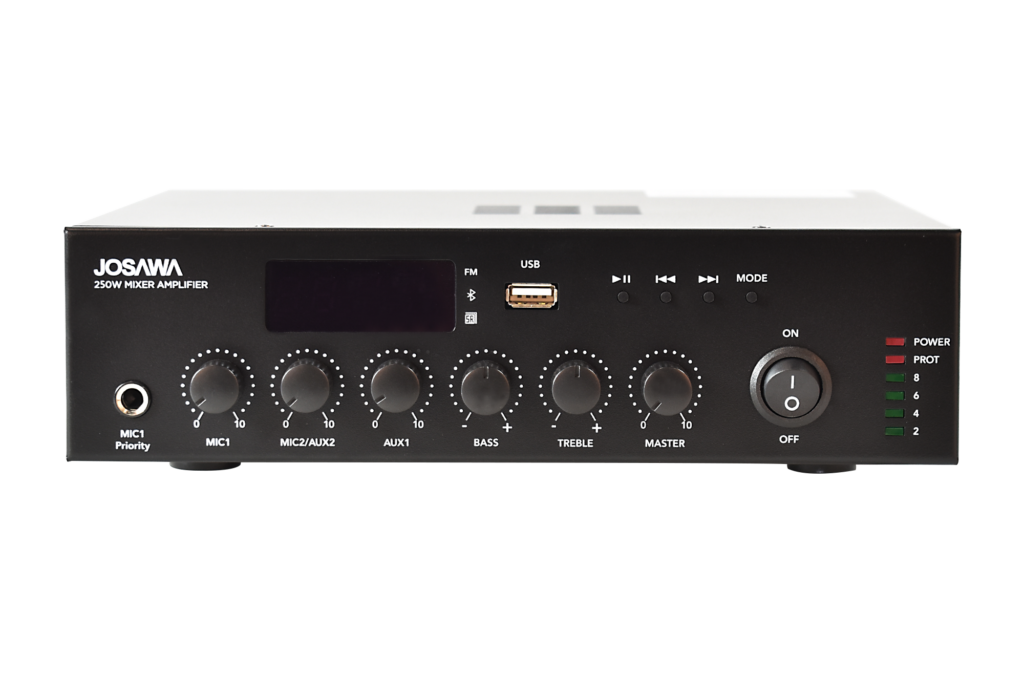

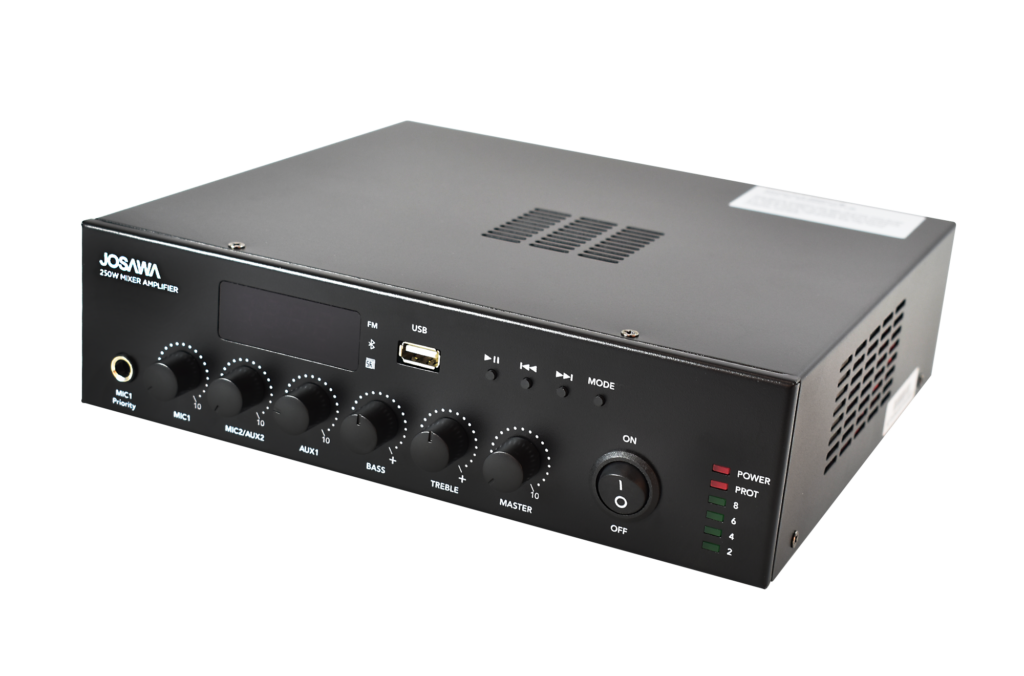

The ALF-250W-UB Compact Mixer amplifier (Class-D) has a built-in Media player with Bluetooth, onboard FM tuner, and MP3 player. Front panel microphone input with priority function, rear panel balanced microphone input with phantom power. Emergency input function. Dual RCA line inputs and RCA aux out. 250W at 70/100V and 4 - 16 ohms, 24V backup power input.

Product  Features

  • Speaker Output of 100V or 70V and 4 - 16 ohms rated power output of 250W
  • USB, FM Radio, and Bluetooth with remote control
  • 2 MIC inputs, 1 EMC input, 2 Line inputs, 1 Line output
  • Individual Volume control for Mic 1 - 2, Aux 1 - 2,  bass, treble, and master volume control
  • Supports both AC100 - 240V and 24V power Supply
  • Priority: EMC > MIC1 > Others
  • LED indicators for power, clip, protect, and signal
  • With Short-Circuit, clip, overload and high temperature protection.
  • Ideal for small venues such as Classrooms, retail stores, coffee shops, restaurants, bars, pubs, etc
  • Class-D

Specifications

Rated Power 250W
Speaker Outputs 100V or 70V & 4 Ohms – 8 Ohms-16 Ohms
Connector Mic 1 input by Unbalanced Jack

Mic 2 Balance XLR Socket

Line 1-2 inputs by RCA: Line output by RCA
Attenuation Microphone 1-2, Line 1-2 and Mp3/FM, bass/treble and master
MIC1 – 2 input Sensitivity 5mV
AUX1 & 2 input Sensitivity 350mV
EMC input Sensitivity MIC 350mV
MIC Frequency response 180Hz – 10kHz (+- 3dB)
AUX Frequency response 70Hz -16Hz (+- 3dB)
Noise < 5mV (4 Ohm load output terminal)
THD < 1% 1KHz
Protection Short Circuit, Clip Overload and high Temp protection
Treble adjustment 10dB (+-2)
Bass adjustment 10dB (+ -2)
Rated Power Supply AC-110-220V
Rated output voltage 250W/4 Ohm, AC220V
Priority EMC>MIC1>Other
Dimensions 247 x 198 x 66mm
Packaging Size 343 x 302 x 121mm
Net Weight 2.6Kg

Gallery

Hi-Res Images Here

Resources

FAQ's

1. Q – How many inputs does the 250W-UB support?
A – 5. 2 x microphone, 2 x RCA and EMC. Also, there is Bluetooth, a USB input for music files as well as FM capability.

2. Q – Can I use this amplifier with a 100v system?
A -Yes, the amplifier supports both 70v / 100v and 4 – 16 ohm.

3. Q – What is the output of the amplifier?
A – 250 Watts

4. Q – How do I control the amplifier?
A –  It is controllable via IR remote control and the front panel volume knobs.

5. Q – Does the amplifier support phantom power for condenser microphones?
A – Yes, there is a selectable switch by the MIC2 input.
