ALF-120W-UB

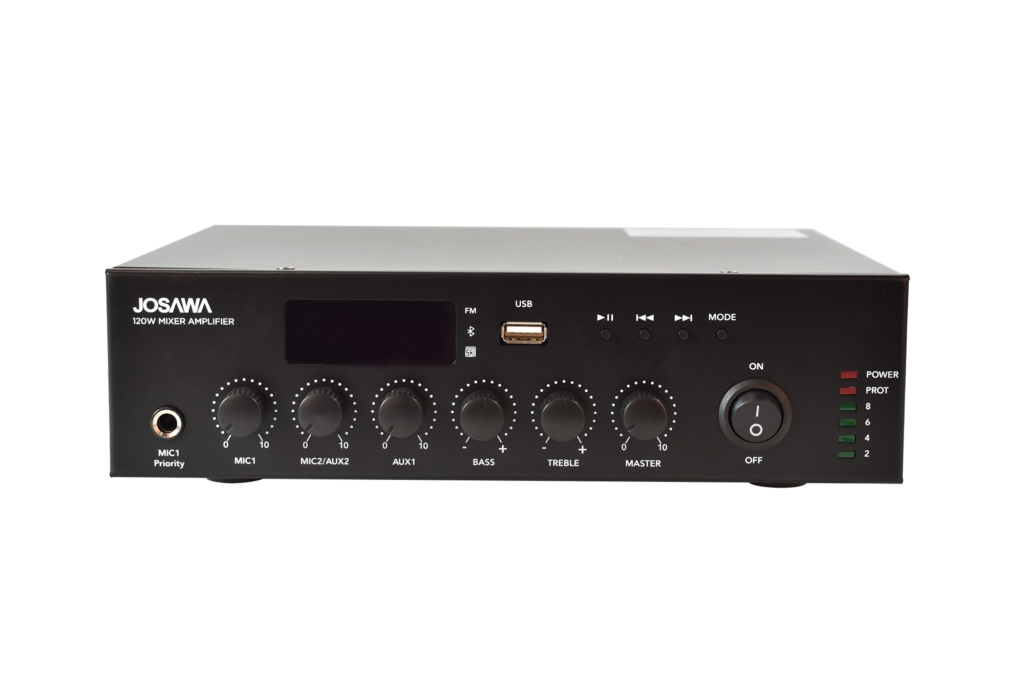

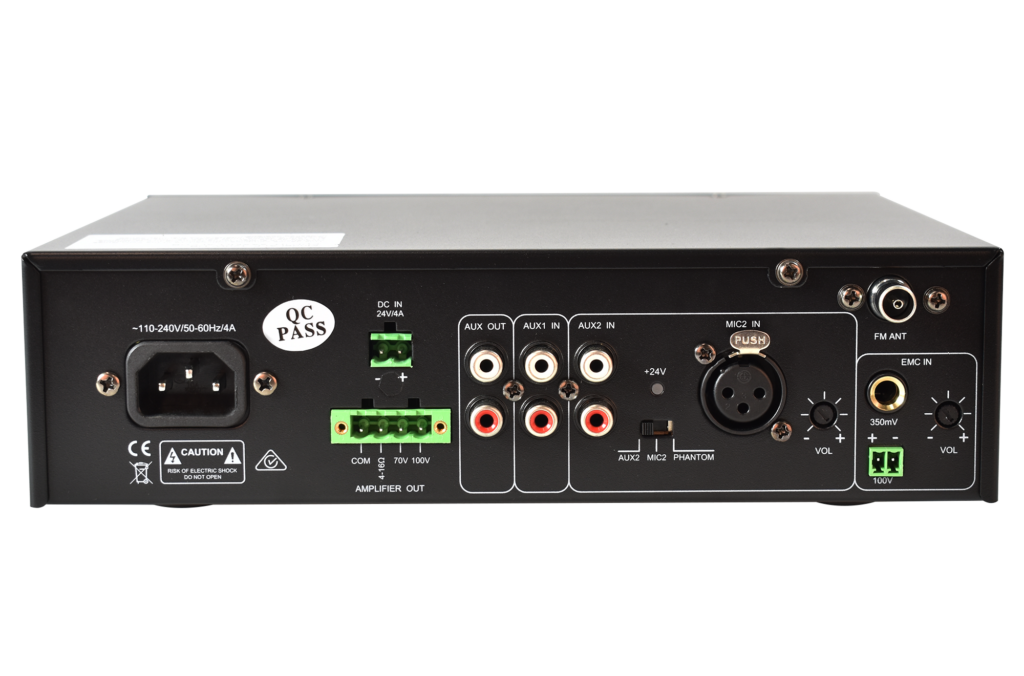

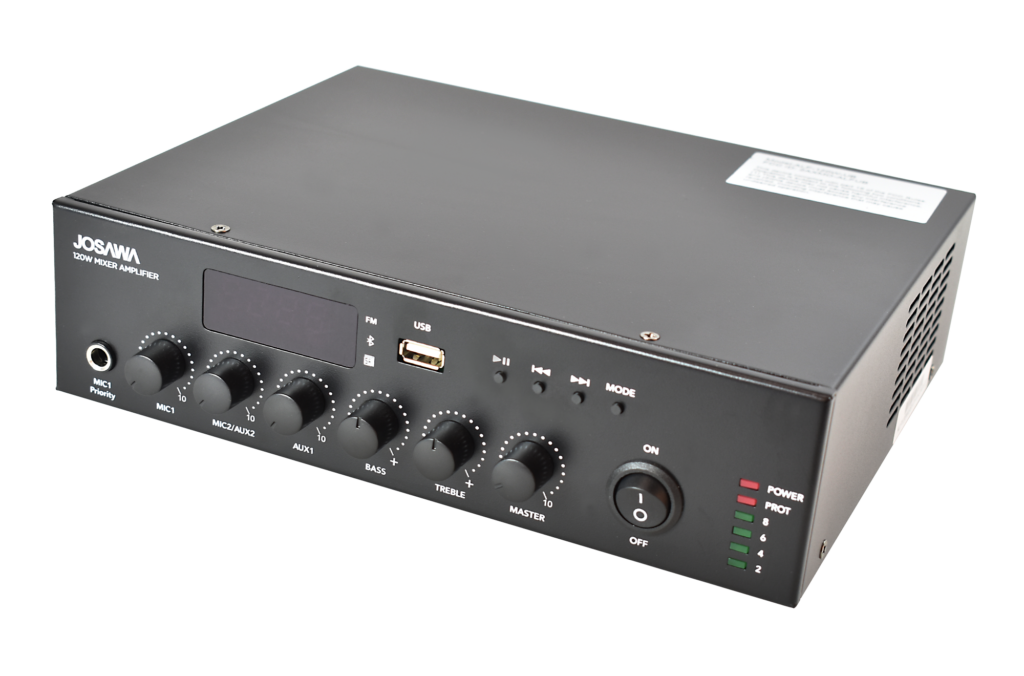

The ALF-120W-UB Compact Mixer amplifier (Class-D) has a built-in Media player with Bluetooth, onboard FM tuner and MP3 player. Front panel microphone input with priority function, and rear panel balanced microphone input with phantom power. Emergency input function. Dual RCA line inputs and RCA aux out. 120W at 70/100V and 4 - 16 ohms, 24V backup power input.

Product Features

  • Speaker Output of 100V or 70V and 4 -16 ohms rated power output of 120W
  • USB, FM Radio, and Bluetooth with remote control
  • 2 x MIC inputs, 1 x EMC input, 2 x Line inputs, 1 x Line output
  • Individual Volume control for Mic 1 - 2, Aux 1 - 2,  bass, treble, and master volume control
  • Supports both AC100-240V & 24V power Supply
  • Priority: EMC > MIC1 > Others
  • LED indicators for power, clip, protect and signal
  • With Short-Circuit, clip, overload and high temperature protection.
  • Ideal for small venues such as Classrooms, retail stores, coffee shops, restaurants, bars, pubs, etc.
  • Class-D

Specifications

Description  PA Amplifier with USB/SD & FM & Bluetooth
Rated power  120W
Speaker Outputs  100V or 70V & 4Ohms-8 Ohms-16 Ohms


Connector

 Mic1 input by unbalance jack MIC 2 balance XLR socket

Line1-2 inputs by RCA; Line output by RCA
Attenuation  Microphone1-2, line1-2 and Mp3/FM, bass/treble and master
MIC1 input sensitivity  5mV
MIC2 input sensitivity  5mV
MIC3 input sensitivity  5mV
AUX1 input sensitivity  350mV
AUX2 input sensitivity  350mV
EMC input sensitivity  350mV
MIC frequency response  180Hz～10kHz（±3dB）
AUX frequency response  70Hz～16kHz（±3dB）
Noise  <5mV (4 ohm load output terminal)
THD  <1%1KHz
Protection  Short-circuit, clip, overload and high temp protection
Treble adjustment  10dB（±2）
Bass adjustment  10dB（±2）
Rated power Supply  AC~110-220V
Rated outpu voltage  120W/4Ω, AC220V
Priority  EMC > MIC1 > others
Machine size(L×W×H)  247*198*66mm
Packing size  343*302*121mm (1PS)
Maximum packing size  630*355*283mm (4PS)
Net Weight  2.6kg
Gross Weight  3.25Kg

Resources

Gallery

Hi-Res images here

FAQ's

1. Q – How many inputs does the 120W-UB support?

    A – 5. 2 x microphone, 2 x RCA and EMC. Also, Bluetooth, a USB input for music files as well as FM capability.

2. Q – Can I use this amplifier with a 100v system?

    A – Yes, the amplifier supports both 70v / 100v and 4 – 16 ohm.

3. Q – What is the output of the amplifier?

    A – 120 watts

4. Q – How do I control the amplifier?

    A – It is controllable via IR remote control and the front panel volume knobs.

5. Q – Does the amplifier support phantom power for condenser microphones?

    A – Yes, there is a selectable switch by the MIC2 input.
