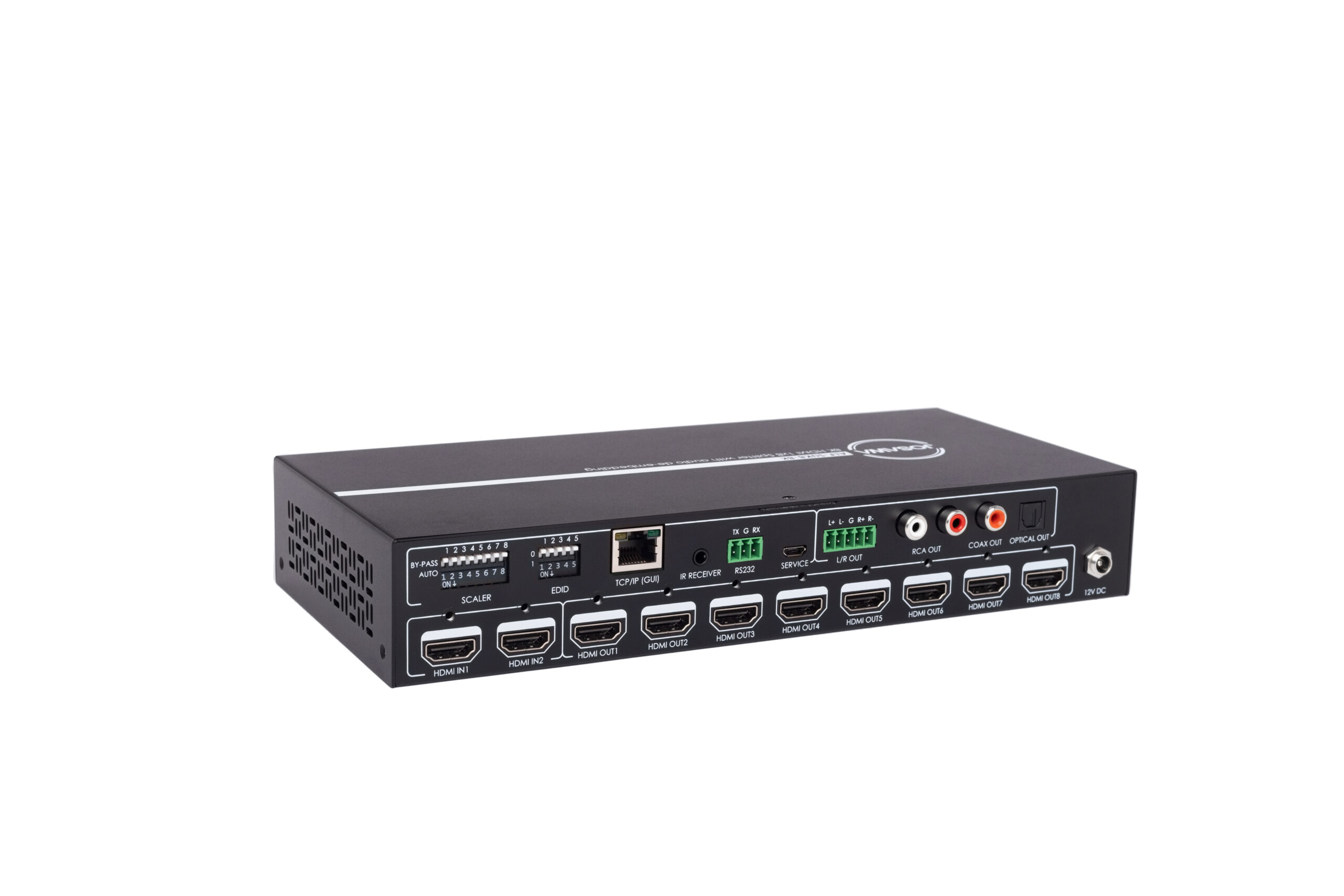

ALF-SUK8-8K

Description

The ALF-SUK8-8K is an HDMI2.1 switcher and splitter, scaler and stabilizer, with one HDMI input and 8 HDMI outputs.

It is Full HDMI 2.1, FRL 48Gbps, and HDR support ensure stable signalling even at the highest bandwidths, HDCP 2.3 compliant. This splitter includes de-embedded audio, scaling, EDID management, and front panel LED indicators for power and signal status

Features:

  • 1, HDCP2.3 compliant
  • 48Gbps Bandwidth (FRL 5)
  • Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
  • Built-in 2×1 switcher
  • EDID management via 5 pin DIP switcher, with the source through a display’s EDID or internally stored EDID
  • De-embedded audio: 1 x balanced, 1 x Optical, 1 x RCA
  • Downscaling from 8k to 8k or 4k, 4k to 1080p legacy displayers
  • RS232, IR and GUI control
  • Alfatron or Josawa unique RS232 codes and GUI design
  • TCP/IP is to allow the FW upgrade to be done over the network & to be discoverable via third part management system
  • CEC Display ON/OFF control with backlit button

.

Specifications

VIDEO
Video Resolution Up to 8K 60Hz 4:2:0/8K 30Hz 4:4:4/4k 120Hz
HDR Formats 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG
Colour Space YUV (Component), RGB

(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)

Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Supported
Deep Colour Up to 16 bit
Scaling on each

output

By-pass or AUTO Scale & 8k to 8k or 4k, 4k to 1080p
AUDIO
HDMI Audio PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
COAX LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio
Analog (Balanced) PCM 2.0 CH
Analog ( on RCA) PCM 2.0 CH
HDCP




HDCP Management

Input: HDCP 2.3 and backward compatible
Output: Manageable (Default follow the display).

For example: it will output HDCP 1.4 when source is HDCP 2.3 or 2.2 when connect to HDCP 1.4 display. It will turn off HDCP if display does not support HDCP.

Can turn off HDCP by DIP switch compulsory


















Downscaling Capability

Each output can downscale independently
1: “By-PASS” status: it will pass through whatever from inputs to outputs without any processing

2: “AUTO” Status, EACH output will downscale, rules as below:



2.1 : If the source is 8K, but the connected displayer max supports 4K, it will downscale to 4K;

2.2 : If the source is 8K, but the connected displayer max supports 1080p, it will downscale to 4K;

2.3 : If the source is 4K, but the connected displayer max supports 1080p, it will downscale to 1080p;

3: Scale limitation



3.1 : Can’t downscale from 8K to 1080p, If the source is 8K, but the displayers, Max supports 1080p, it will have black screen; But, if the source is 4K, the displayers, max support 1080p, it will output 1080p;



3.2 : Can’t support 720p or lower resolutions.

EDID Management Will Provide when project starts
GUI Will provide the GUI pages when project starts
