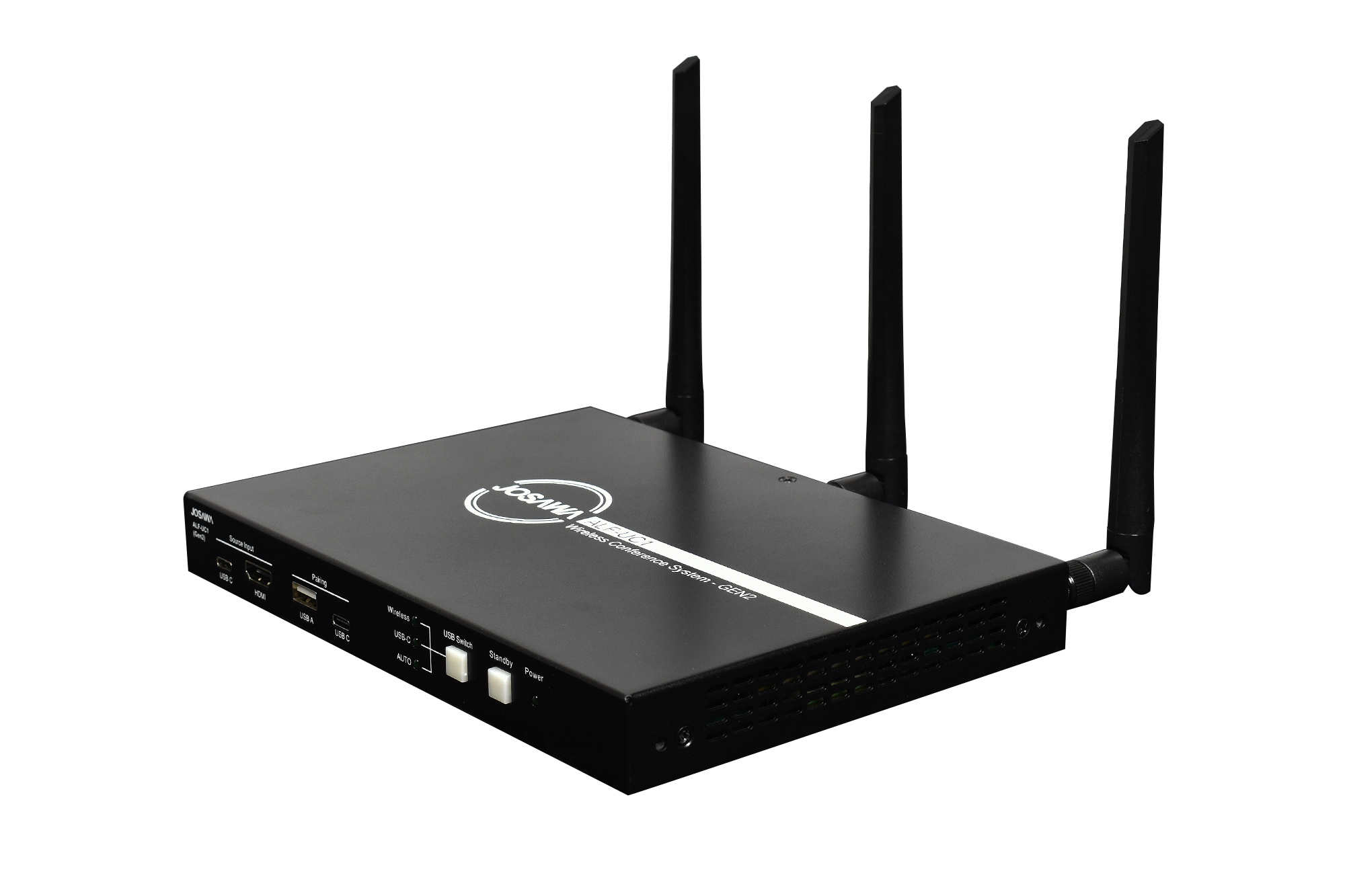

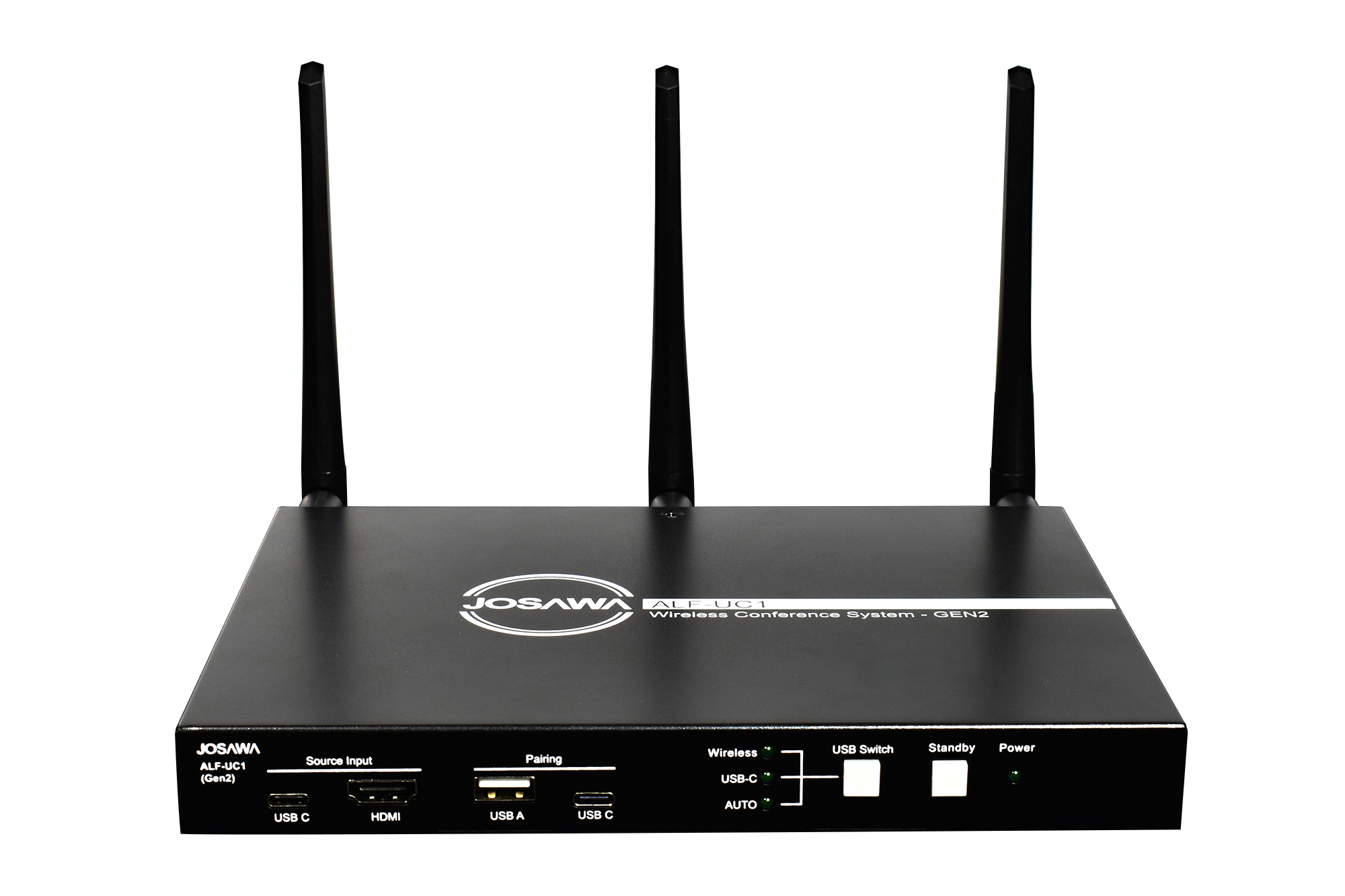

ALF-UC1(Gen2)

The JOSAWA ALF-UC1(Gen2) is a 4K wireless conferencing system with two HDMI outputs and 4K optional dongles which makes connecting or participating within a meeting simple, with the touch of a button.

Product Features

• Output 1 Resolutions up to 4K60
• Output 2 Resolutions up to 1080p60
• HDMI 1.4 and 2.0 compliant
• HDMI, UBC-C input resolutions up to 4k30

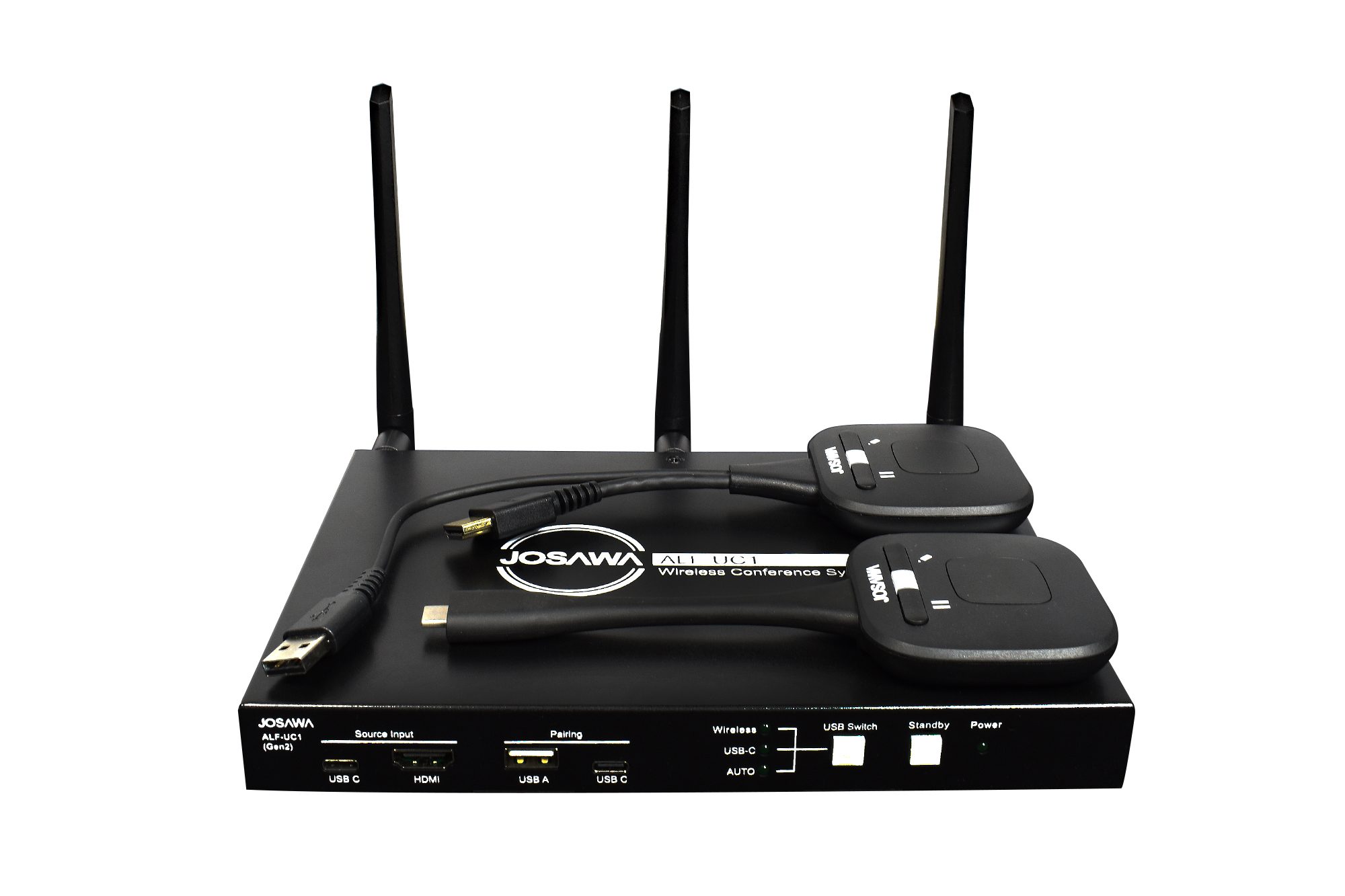

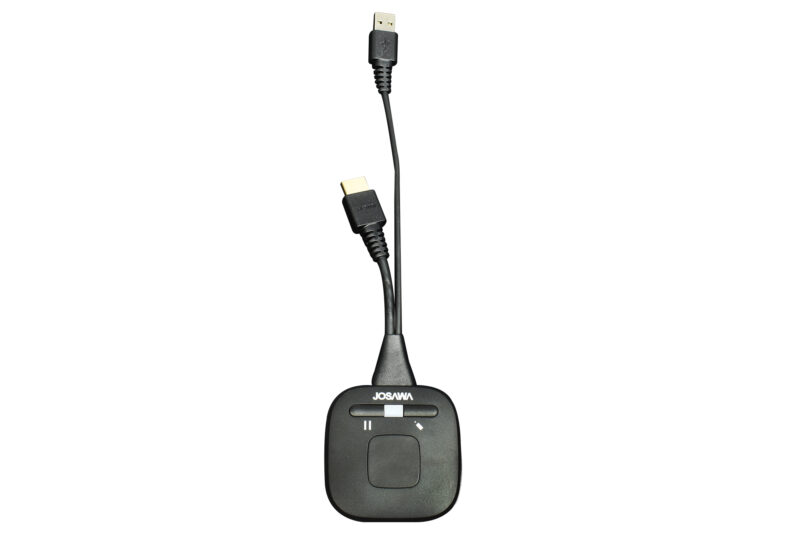

• ALF-HDMI-D(Gen2) and ALF-USBC-D(Gen2) Dongle input resolutions 4k30
• Airplay, Miracast and Chromecast resolutions 1080p60

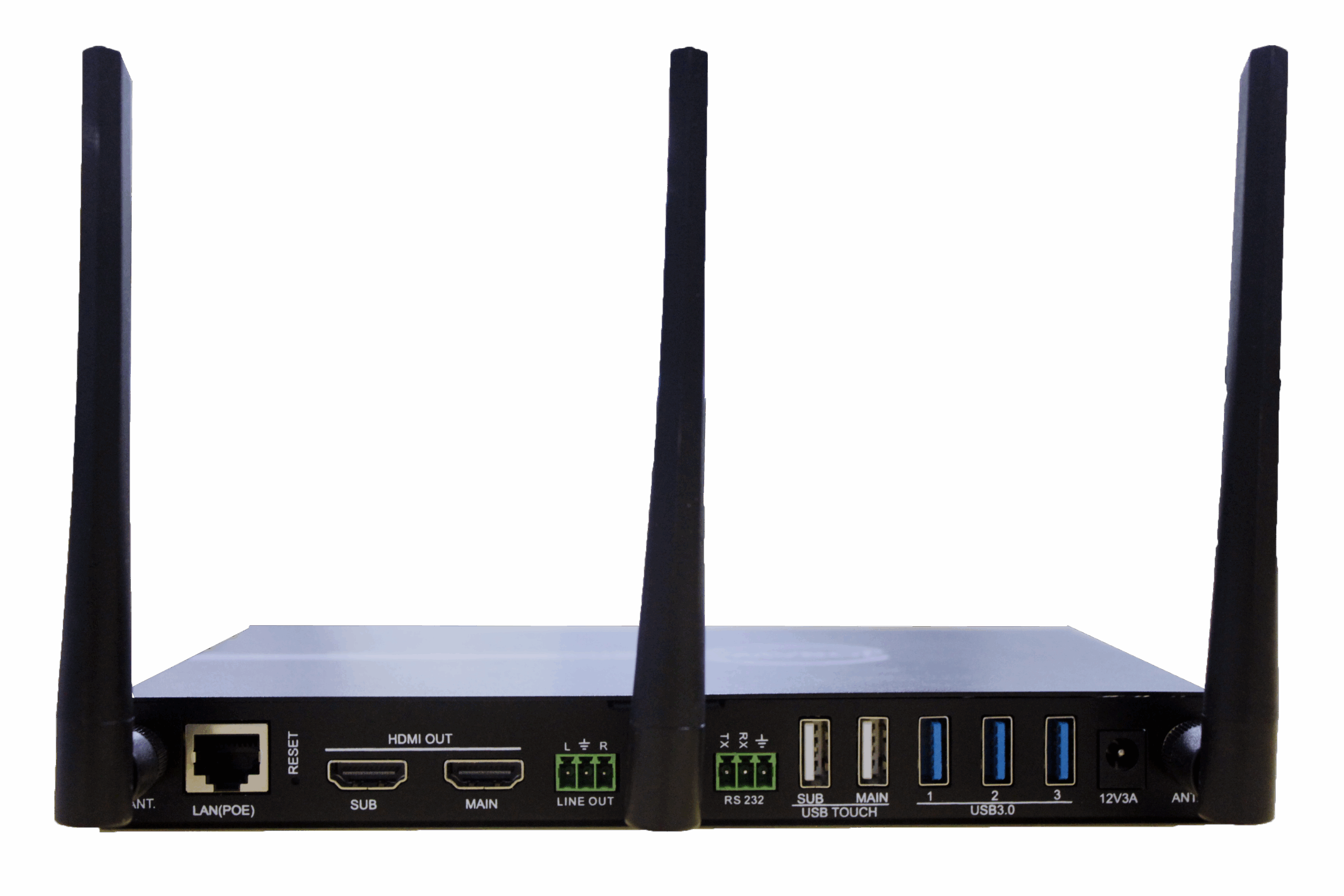

• Unit supports up to 3 x USB-A 3.0, 1 x Type C(2.0 Pairing), 3 x USB-A 2.0 (touch and pairing)
• Audio outputs HDMI, Phoenix connector, USB
• Supports all major operating systems Windows, MacOS, Android, IOS
• Plug-and-Play solution with Wireless USB drivers required
• WIFI Data rate is WIFI IEEE 802.11 b/g/n/ac
• Wifi 2.4GHz and 5GHz supported
• Lan port is a 1Gbs speed
• Latency <100ms, Minimum 20s
• Control method is Web GUI, Telnet, RS232, Front Panel buttons
