Description
ALF-MMX88A-N

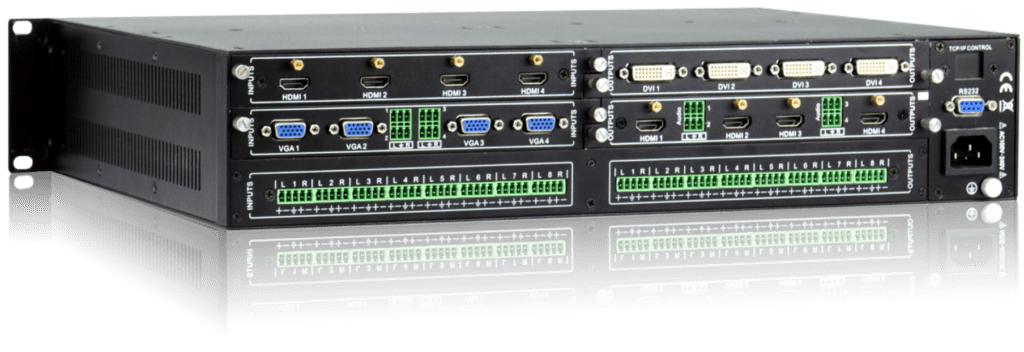

The ALF-MMX88A-N is a high-performance 8 x 8 video and audio modular matrix switcher. It supports different video signals with cross switching. Every AV signal is transmitted and switched independently to decrease signal attenuation. The ALF-MMX88A-N supports various changeable cards including HDMI, VGA, and HDBaseT. Users can choose to insert different signal cards for different applications. The ALF-MMX88A-N has an RS232 port and a TCP/IP port for convenient control from third-party devices. With its flexible design, the ALF-MMX88A-N can be used for different projects and tends to be an all-in-one solution. It is the combo solution for multimedia conference rooms, control rooms, broadcasting rooms, shopping centre’s etc. The ALF-MMX88A-N will handle all the audiovisual management, including the switching, driving, scaling etc.
Product Features
- Modular matrix switcher cage 8×8 at 2U high with Audio break-away switching
- Button and RS232 control with optional TCP/IP control
- Backlit buttons
- Redundant power supply
- Inputs: Two MMX Cards
- Outputs: Two MMX Cards
- Audio break-away switching
Combinations of the following cards can be used to create your unique Matrix Switch:
MMX Input Cards for Modular Matrix Switchers
- ALF-MMX-4I-UH 4x 4K HDMI input card with 4 HDMI, and 4 external L+R audio ports
- ALF-MMX-4I-HS 4x Seamless HDMI Inputs max 1080P
- ALF-MMX-4I-BT 4x 4K HDBaseT input card with 4 HDBT, 4 RS232, and 4 external stereo audio ports
- ALF-MMX-4I-BTS 4x 1080P seamless HDBaseT input card with 4 HDBT, 4 RS232 and 4 external stereo audio ports
- ALF-MMX-4I-SD 4x SDI ports input cards
MMX Output Cards for Modular Matrix Switchers
- ALF-MMX-4O-UH 4x 4K output card with 4 HDMI and 4 external L+R audio ports
- ALF-MMX-4O-HS 4x Seamless HDMI output max 1080P
- ALF-MMX-4O-BT 4x HDBaseT output card with 4 HDBT, 4 RS232 and 4 external stereo audio ports
- ALF-MMX-4O-BTS 4x 1080P seamless HDBaseT output card with 4 HDBT, 4 RS232 and 4 external stereo audio ports
