ALF-BM10W/B

Category:

Description

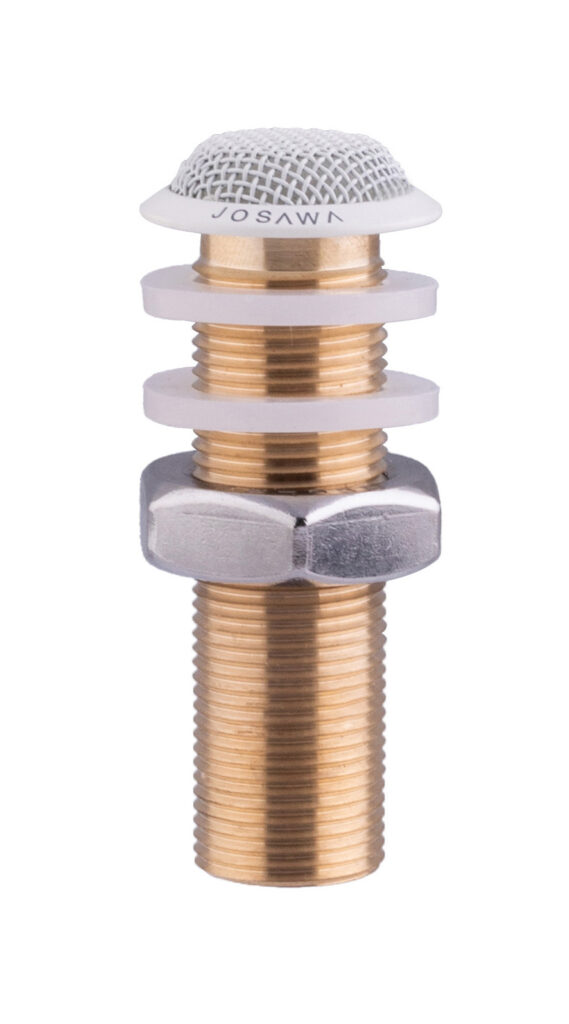

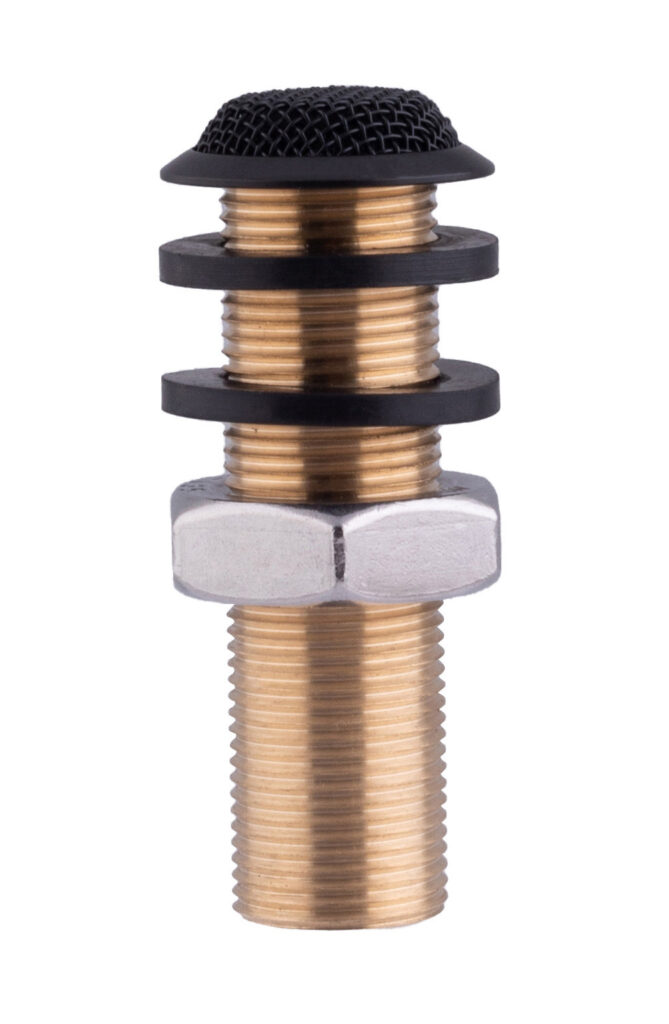

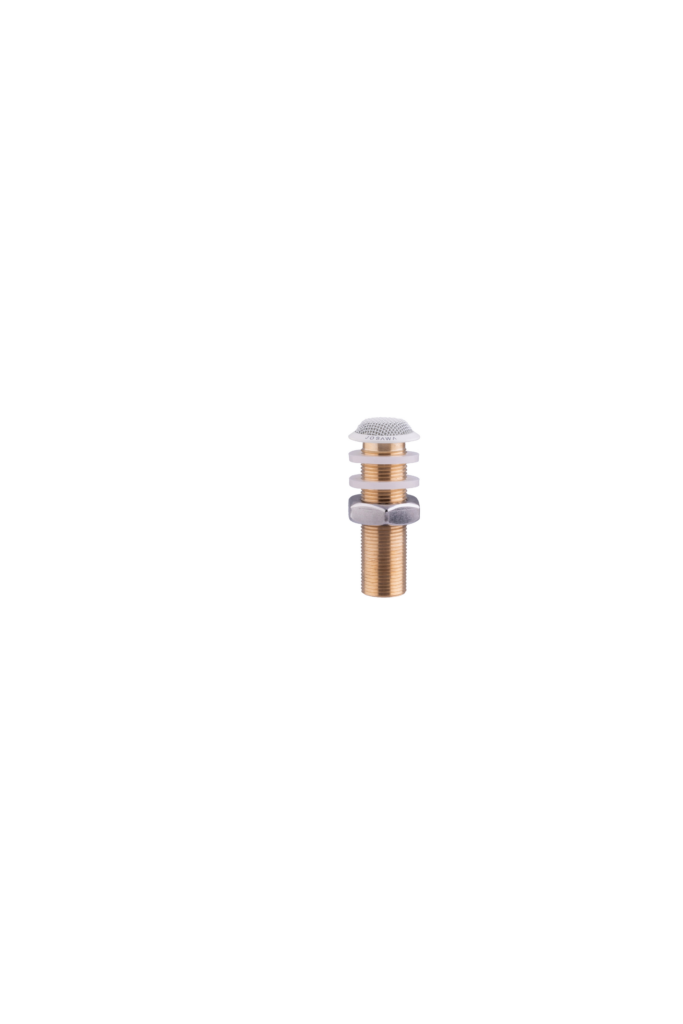

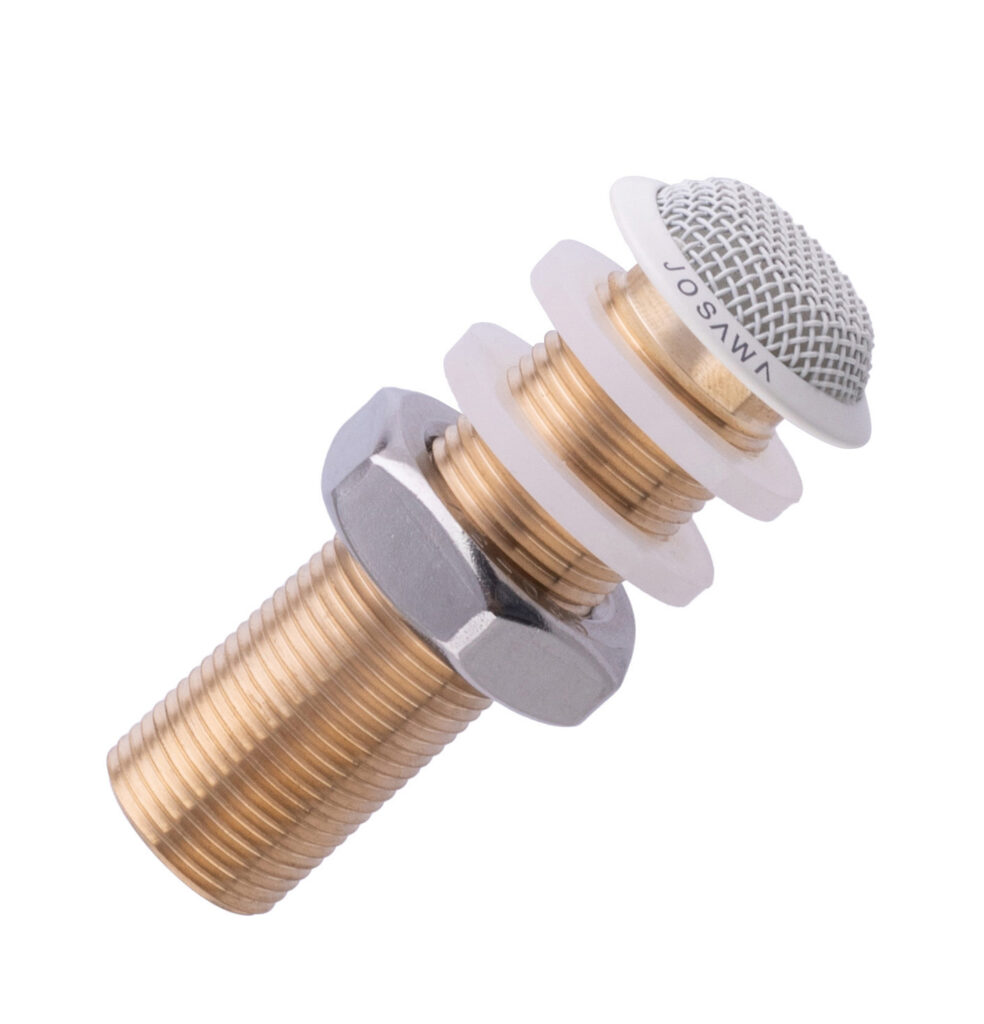

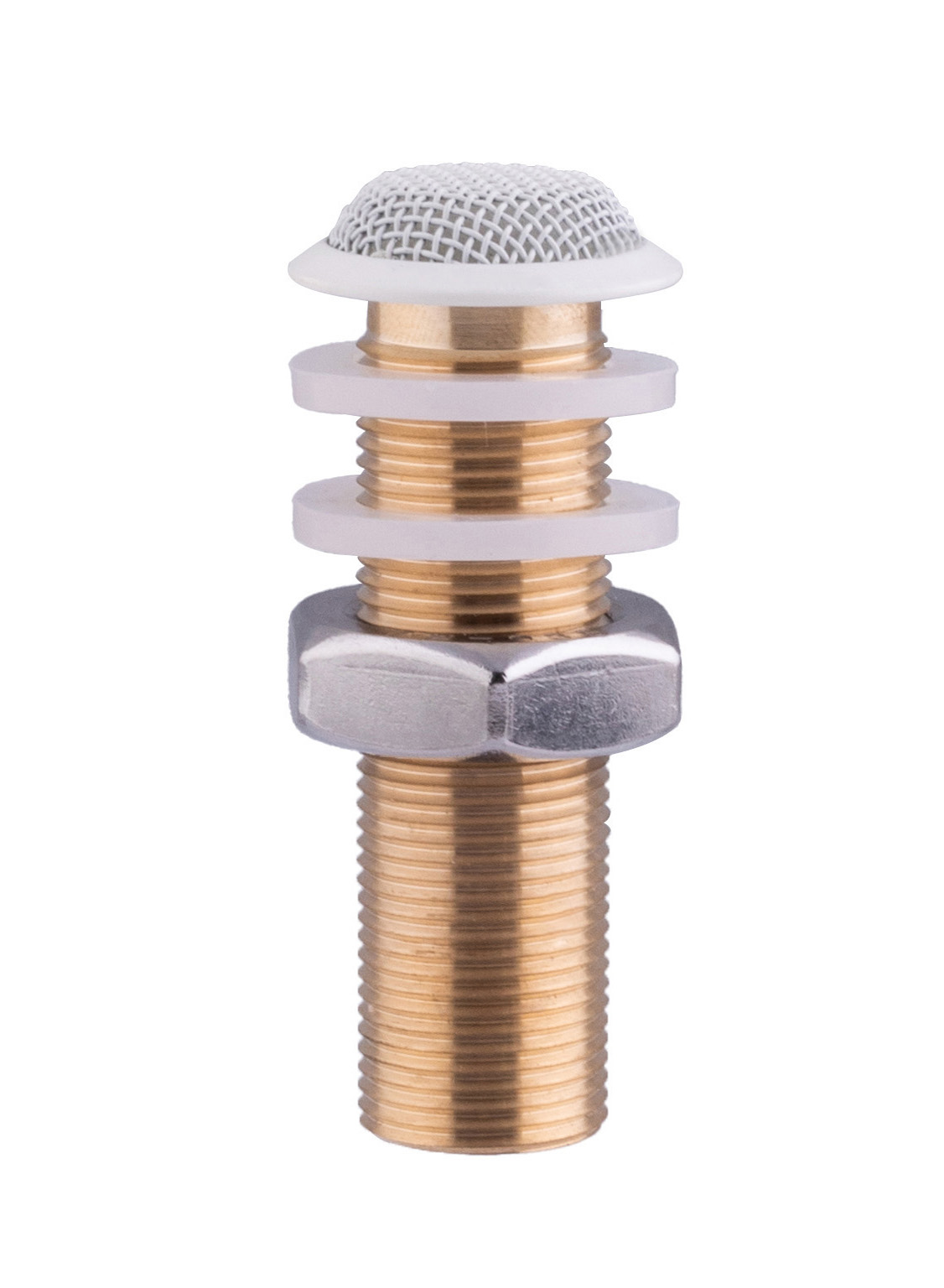

JOSAWA ALF-BM10 omnidirectional boundary microphone, small design, especially suitable for installation on inconspicuous desktop, ceiling and instrument panel. Microphone has the characteristics of high sensitivity, It has good directivity and low noise, which is suitable for meetings, churches, speeches and other occasions. The microphone uses 9v-52v phantom power supply.

Available in Black or White.

Specifications

Parameter Value
Transducer Type Electret condenser
Polar pattern Half-spherical
Frequency Response 50Hz – 20kHz
Open circuit voltage

at 1 kHz (0 dB = 1 V/Pa)

12.8 mV/Pa = -38dBV
Nominal impedance 200 Ω
Load impedance ≥2 kΩ
Signal to noise ratio 68dB [A]
Max. sound pressure level 117 dB [SPL @ 1% THD]
Equivalent SPL 26 dB [A]
Phantom supply 9-52V
Current consumption 3.0 mA
Connection 3-pin XLR.
Color Black/Silver
