ALF-30X-NDIC
ALF-30X-NDIC
The ALF-30X-NDIC is an HD PTZ camera equipped with a 30X Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, houses of worship, and conference venues.
The ALF-30X-NDIC is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization.
Product Features
- 1080P video with a Frame rate up to 60fps
- 30X Zoom Lens which gives you a clear and a fluent image
- Field of view: 2.34° (Tele), 65.1° (Wide)
- Leading Auto Focus Technology
- Low Noise and High SNR
- Quiet PTZ
- 255 Presets
- Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP and RTMP
- Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
- Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation, and Emergency command systems
- SDI, HDMI, RS232, Network, NDI Connectivity with audio input
- PC control using Sony Visca, Pelco D/P commands
- Powered by 12V DC Power Adaptor or POE* (All NDIC Cameras supplied after 25th September 2020 will have POE)
OBS SOFTWARE COMPATIBLE
7 YEAR WARRANTY
DEFAULT IP address：192.168.5.163
Specifications
| Model | ALF-30X-NDIC | |||
| Camera Parameter | ||||
| Optical Zoom | 30X
f＝4.3~129mm |
|||
| Sensor | 1/2.8-inch-high quality HD CMOS sensor | |||
| Effective Pixels | 16: 9, 2.07 megapixel | |||
| Video Format | HDMI/SDI video format
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
|||
| View Angle | 2.34°(tele)
65.1°(wide) |
|||
| AV | F1.6 – F4.7 | |||
| Digital Zoom | 10X | |||
| Minimum Illumination | 0.1Lux | |||
| DNR | 2D & 3D DNR | |||
| White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K | |||
| Focus | Auto/Manual/One key focus | |||
| Aperture/Electronic Shutter | Auto/Manual | |||
| BLC | ON/OFF | |||
| WDR | OFF/ Dynamic level adjustment | |||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |||
| SNR | >55dB | |||
| Input/Output Interface | ||||
| Video Interfaces | SDI, HDMI, LAN (NDI) (POE), RS232 (In & Out), RS485, A-IN | |||
| Video output interface | HDMI, SDI, LAN, | |||
| Video Compression | H.264, H.265, Dual stream output | |||
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |||
| Audio Input Interface | A-IN: Double track 3.5mm linear input; (Network Stream embedding only, does not embed to HDMI or SDI outputs) | |||
| Audio Compression | AAC/MP3/G.711A Audio compression | |||
| HD IP Interface | 100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port. Port : 1259, | |||
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, NDI | |||
| Power Interface | HEC3800 Outlet (DC12V),LAN(POE) | |||
| Supply Adapter | AC110V-AC220V to DC12V/1.5A | |||
| Input Voltage | DC12V±10% | |||
| Input current | 1A (Max) | |||
| Consumption | 12W (Max) | |||
| PTZ Parameter | ||||
| Pan/Tilt Rotation | ±170°, -30°～+90° | |||
| Pan Control Speed | 0.1 -60°/sec | |||
| Tilt Control Speed | 0.1-30°/sec | |||
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec | |||
| Preset Number | 255 presets (10 presets by the remote controller) | |||
| Other Parameter | ||||
| Storage temperature | -10℃～+60℃ | |||
| Storage humidity | 20%～95% | |||
| Working temperature | -10℃～+50℃ | |||
| Working humidity | 20%～80% | |||
| Dimension | 150mmX150mmX167.5mm | |||
| Weight | 1.4KG | |||
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset | |||
| Accessories | ||||

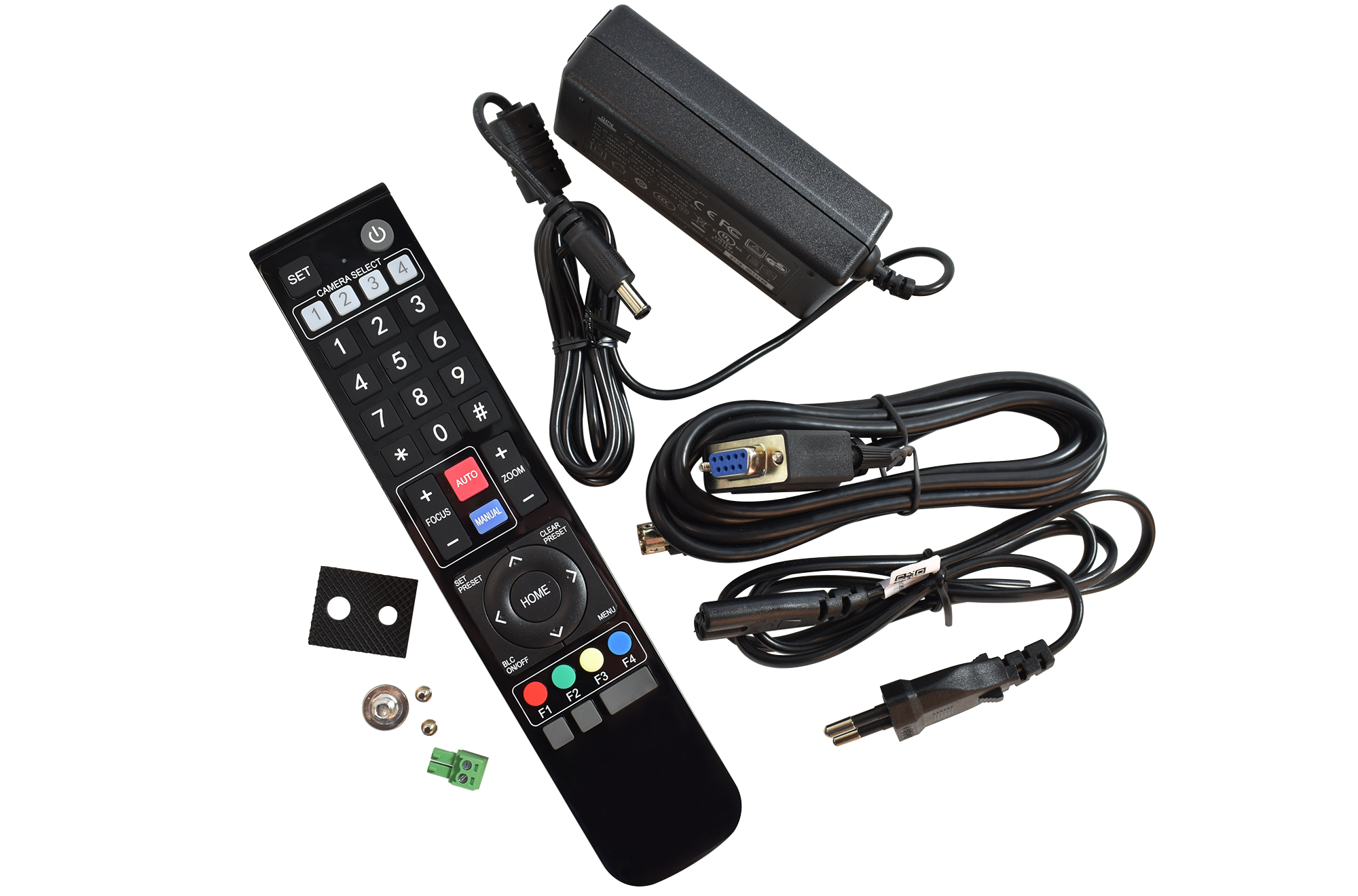

| Accessories | 12V/1.5A power supply, RS232 cable, remote control, manual, warranty card | |||
| Included accessories | Wall mount | |||

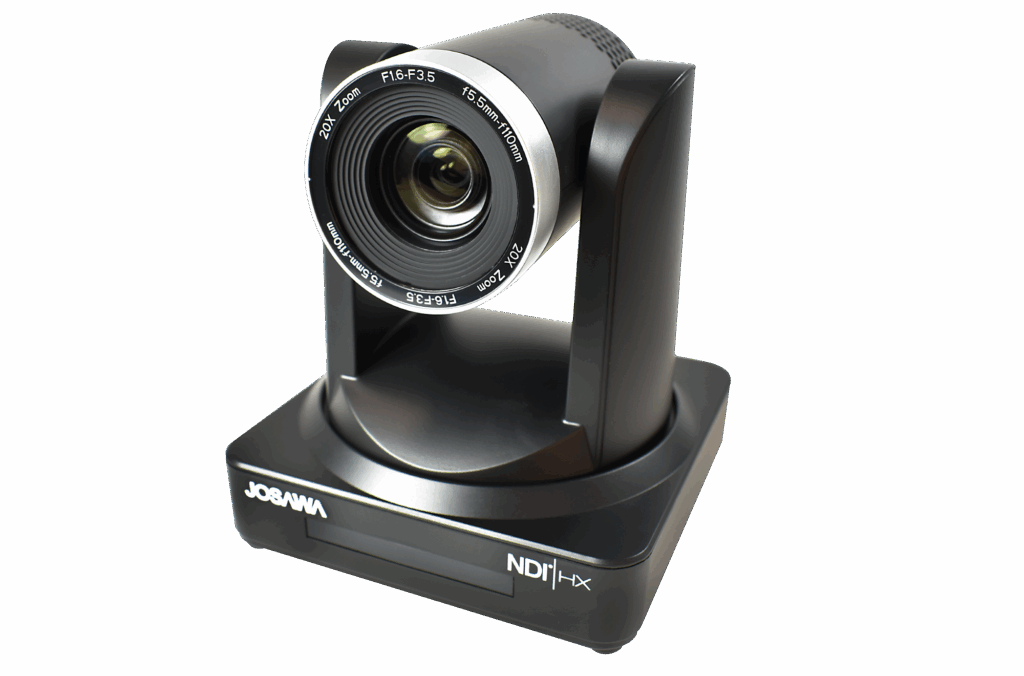

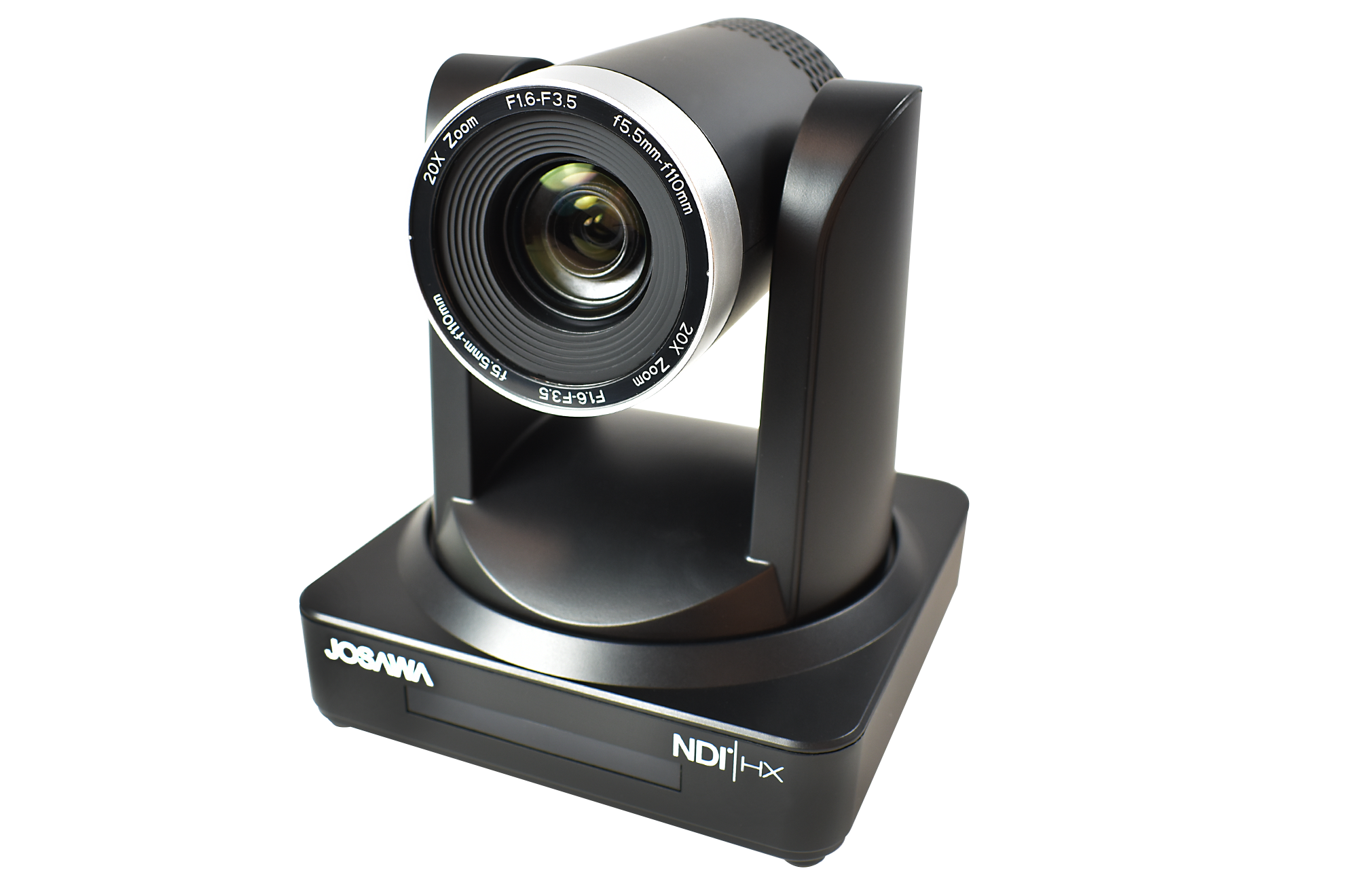

Gallery
Firmware
Flash Player Firmware File Download here
Both the HTML.mrg and Firmware file needs to be uploaded.
Network Upgrade Instructions for HTML File
1. Connect the camera to the computer on the same LAN; open your browser and input the default
IP address：192.168.5.163, The user name: admin and password: admin.
2. Click “configuration” after you have logged in.
3. Click system configuration, then version update, then browse the updated file, and then click to update. After update has been completed, the camera will restart automatically.
4. After the camera has restarted, log in and check whether it has upgraded to the new version.
Network Upgrade Instructions for Firmware
1. Connect the camera to the computer on the same LAN; open your browser and input the default
IP address：192.168.5.163, The user name: admin and password: admin.
2. Click “configuration” after you have logged in.
3. Click system configuration, then version update, then browse the updated file, and then click to update. After update has been completed, the camera will restart automatically.
4. After the camera has restarted, log in and check whether it has upgraded to the new version.
FAQ's
1. Q – How is the camera powered ?
A – With a 12V power supply or via POE.
2. Q – What is the resolution of the camera ?
A – The camera supports 1080@60fps
3. Q – Can the camera be mounted to the ceiling ?
A – Yes, a Alfatron ceiling mount is available
4. Q – What is the zoom range ?
A – 30x Optical Zoom
5. Q – What is the field of view ?
A – 2.34° (Tele) ～ 65.1° (Wide)
